Product Name

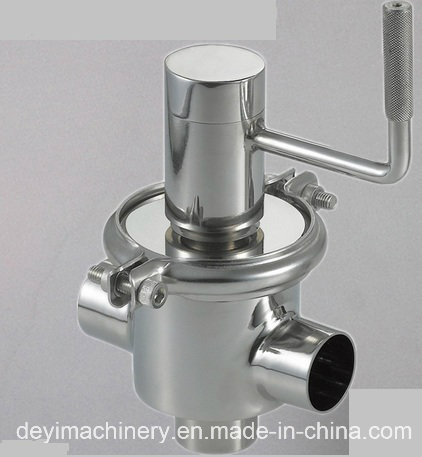

Stainless Steel Sanitary Manual Single Seat Cut off Valve(DY-V043)
Applications
Sanitary reversing valve has very flexible design which meets sanitary requirements, and is mainly used in pipeline systems without contaminant or mixture. As a modern and widely used valve, it is mainly used in the wine brewing, dairy, beverage, and pharmaceutical industries.
Operating Principle
Sanitary reversing valve is remotely operated by means of compressed air or manual. By controlling the relative position of valve plug, it makes the valve open or closed (shut-off type), or changes the flow direction of media.Sanitary reversing valve can
be installed with smart controller.
Technical Specification
Size available | 1/2"~4",DN10~DN100 |
Max. working pressure | 147psi (10bar) |
Control air pressure | 70 ~ 116psi (5 ~ 8bar) |
Working temperature range | EPDM:-20 ~ 135°C |
Sterilization temperature | 150°C, Max. 20 min |
Pneumatic connection | R1/8" (BSP) |
Finish Surface | <32Ra (<0.8um); Other finishes available upon request. |
End connections | butt welded,tri clamp,male and female |
Standard | DIN, 3A, SMS, RJT, IDF or others upon request |
Flow Medium Parts | 304,304L,316L (1.4301,1.4307,1.4404) |
Standard Design
forged spherical body
Compact design
360 degree orientation
Mix-proof design, the bodies can be with different diameters.
Over-pressure protection design preventing the pressure fluctuate to 30bar
Easy disassembly
Seat lift type and cavity spray type available
