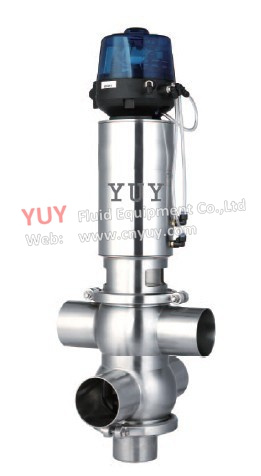

Stainless Steel Sanitary Mix Proof Valve

Stainless Steel Sanitary Mix Proof Valve
Price: US $ 500/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Quick Details

Model: YF Place of Origin: China Wenzhou Standard or Nonstandard: DIN 3A SMS ISO IDF
Structure: MIPROOF Pressure: normal pressure Power: Pneumatic manual
Material: ss304 ss316L Temperature of Media: middle temperature Media: water or other liquid
Model Number: YF 1"-4" Brand Name: YUY
Packaging & Delivery

Packaging Detail: INNER POLY BAG
Delivery Detail: 2-3 days after payment
Specifications

HS Code: 8481804090

TECHNICAL PARAMETER:
1. Application:
Double seat mix-proof valve appicatin: Used for protection mixing products in brewing, dairy and drink. Etc.

2. Working principle:
YF series double seat mixproff valve is controled throgh compressing air. The valve is a normallyclosed(NC) valve.
The double seat valve has 2 divided seals of valve disc. It has a interlinked cavity of leak between 2 seal at working, while it happen leaking, the products will inpour the cavity and flow away from exit. It wil not caused pollution and mixing, the leaking cavity closed while the valve working. It is impossible to overflow for the products. So the roducts can be transported from one pipe to another, also the valve can be washing CIP.

3. Material:
Steel parts: Stainless 304\316L
Sealing: EPDM. (standard)
SILICON, FDM, HNBR(CHOOSE).


4. Advantages:
Sealings: Excellent acid proof, alkali proof and high temperature performance. Little degree of permanent compression deform.
Investment forging valve plug: Pressure durability less than 1.2MPA, metallographic structure beeter than casting ones.
Appareant design: Keep updated with international fashion style.
Cost performance: Impor substituted, cost saved and reiableoperation.

5. Connection types:
Welded.
Clamped
Screw or threaded
Welded - srew
Flange
To assure the connection and substitution with imported facilities, all the connecton styles withe pipe or equipment are made to DN11850, IDF / ISO, SMS 3A international standard size.

6. Size:

DIN: DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100
3A: 3/4", 1", 1 1/2", 2", 2 1/2", 3", 4"
SMS: 19, 25, 32, 38, 51, 63, 76, 89, 102
ISO:? 19,? 25,? 32,? 38,? 51,? 63,? 76,? 89,? 102,


7. Operation Type:
Manual: Lever or duck-billed
Pneumatic actuator: Stainless teel or plastic with control box or not.
Electric actuator: Sigle action or double action
8. Features of Pneumatic actuator:
Normally opened: The spring is OPEN and pneumatic OFF
Normally closed: The spring is OFF and pneumatic OPEN
With signal feedback inductive proder / sensor for option
Compact appearance, small volume, large torgue
Simple and convenient assembly
9. Technical Parameter:
OD Range: DN25~ DN200, 1"~ 8"
Anti-pressure: 10Bar
Compressed Air supply: MIN: 4 BAR, MAX: 8BAR
Pneumatic Actuator torgne: 40Nm
Finishing degree:
Cutting: Ra1.5 ~ 3.2um
Polish: Ra0.4~ 0.8um
10. Requirements for compressed air quality that the executor needs:
Compressed air joint: Air pipe equiped equips with air adapter R1/"
Max grain size: 0.11mm
Max Oil content: 0.08 ppm
Dew point: 10 ° C or less
Max water conent: 7.5g/kg
Prod Model: YF
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Construction Type: L/L, T/L, L/T, T/T
YUY Fluid Equipment Co., Ltd, located in Wenzhou, is one of the few domestic manufacturers of high precision fluid equipments.

YUY is specialized in Manufacturing

Sanitary Pumps

Sanitary Valves

Sanitary Pipe fittings etc.,

Which can be widely used in food, beer, beverage, dairy products, cosmetic, pharmacy and biology engineering field.

For that our products will be applied in the fluid systems with strict sanitary and sterilizing requirement, so we do have many strict tests for our products, such as the performance curve test of pumps, frequency curve, the smooth and clean test, pressure test and so on.

All the commodities are made in accordance with the standards of ISO, IDF, DIN and 3A. The technology is comparable to the international level in the same field and the quality complies with the requirements of GMP. And the production of YUY is based on advanced manufacture technology and a high sense of responsibility, so that we can provide our customers the products with high quality and high precision.

In addition, our R&D department can explore new products according to out customers' particular requirement. And our production capacity is very great and efficiency, so we can supply the products with best delivery date.

Under the principle of that "the customers are our best inspectors; The market is the most impartial judge of enterprises; Our mission is to provide good quality products with competitive price and satisfactory service for our customers "YUY believe that our honesty, enthusiasm and enterprise will win your support. We are looking forward to starting cooperation, and establish mutual-benefit relationship with our customers, and reach win-win.

Come, and join us!
