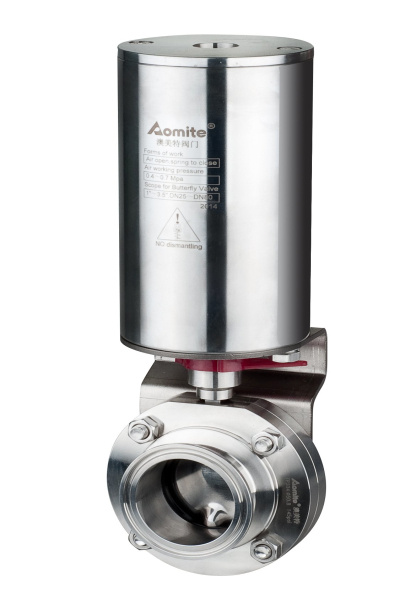

Stainless Steel Sanitary Pneumatic Butterfly Valve

Pressure: 0~145 Psi
Power: Manual/electric/pneumatic
Material: Stainless steel
Temperature of media: -25to180
Media: Water
Port Size: DN15toDN200
Place of origin: Zhejiang, China(Mainland)
Brand: Aomite

Work Principle:
This kind of valve can be handled both by manual or an electric actuator, and also can be handled by a pneumatic actuator
Standard Design:
Various standards of valves can be provided to clients: DIN, 3A, SMS, ISO/IDF, BS/RJT, MANCON etc.
The series of Aomeite butterfly valve: Welded, clamp, male, weld/male, union/male, three-pieces ect.
Technical Data
Materal: 1. Contact with the product components-304/304L/316L, Forging
2. Materal No contact with the product components-304
Sealing material: 1. Standard-EPDM(Working Temperature: -20~+135° C)
2. Option- SILICONE ( Working Temperature: -50+180° C)
VITON ( Working Temperature: -30+230° C)
Surface treatment: 1. Inside surface treatment (Ra≥ 0.4~0.8um)
2. Surface treatment (Ra≥ 0.8~1.6um)
Standard Design:
Working environment temperature-20° ~90 ° /air pressure 0.2~0.6Mpa(Max. 0.8Mpa), Oil-free bearing is added at the sliding friction part to enhance service life.
Working Principle: Single function(spring reset)
Compressed air from the air intake(A)to enter into the space between the cylinder and the reversing accessory piston(B). Made the plunger separate and move to the bottom of vylinder, force the spring
Compressed, the air of cylinder is distcharge through the vent(C), made the piston(B) anti-clockwise 90 dergree rotation through guide grroove drive Reversing master device(D)in the meantime. (means valve opened)
After the solenoid valve for compressed air backward, the piston(B)cylinder move to the top under the elastic spring. The air of middle air cacity is discharge through the air pipe connector by solenoid valve. At that moment the piston(B) clcokwise 90 degree rotation through the guide groove drive Reversing master device(D). (means valve closeed)
