BUTTERFLY VALVE
Butterfly valves, no matter manually or automatically, can be used in food-processing, pharmacey and chemical industries...Butterfly valves, no matter manually or automatically, can be used in food-processing, pharmacey and chemical industries...
Technical specifications
Max. Pressure: 10bar(DN25/100) 8bar(DN125/150)5bar(DN200/300)
Min. Pressure: 0.2bar p. Abs
Operating temperature: -10º C to +120º C(EPDM)
Disc: AISI 316L/304(forged)
Valve body: AISI 316L/304(forged)
Washer and gasket: EPDM conforms to PFA 177.2600
Handle: AISI 304/PP
Surface finishing: Ra≤ 0.8
Compact and robust design
Available in sizes DN25/1" to DN300/12"
Multi-position handle is suitalde up to DN100/4" valve
Pull handle is suitalde up to DN25/1" to DN300/12" valve
Manual handle, pneumatic actuator and electric actuator can be exchangeable with each other
PED97/23EC
FDA. 177.2600
The valve body can be changeable with any kind of connection
Options
Gaskets are available in NBR, MVQ or FPM, which all confirm to standard of FDA177.2600
Connection: Weld, clamp, thread, weld thread, flange, DIN, SMS, RJT, ISO, IDF, 3A
Handle: Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle.
Actuator: Pneumatic stainless steel actuator, pneumatic aluminum actuator, electric actuator
Control: Sensor, C-TOP, c-top controller(AS-I)

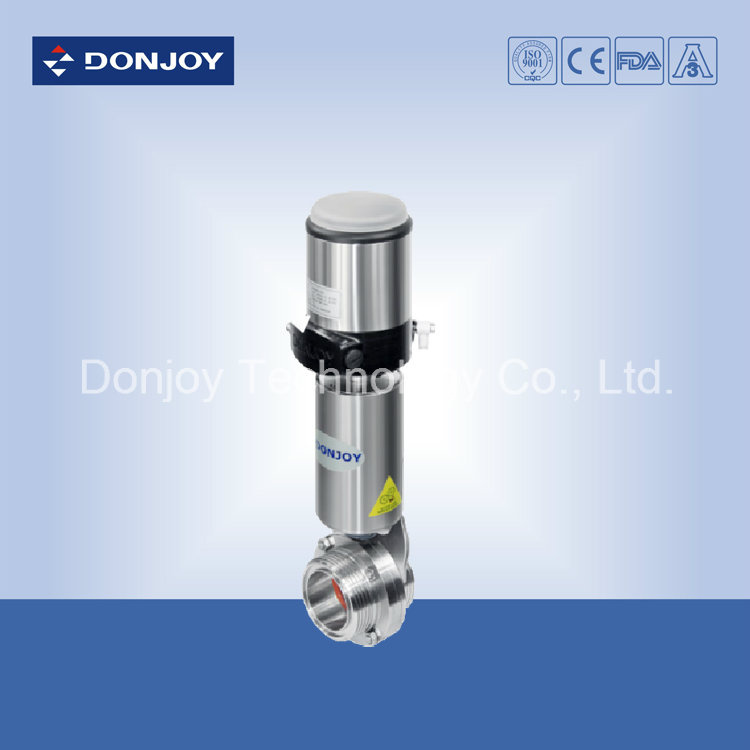

| Product Name: | Stainless steel sanitary pneumatic threaded butterfly valve |
| Valve Body Material: | 1.4404/1.4301, SS304/SS316L |
| Seal Material: | EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
| Mex working pressure: | 10Bar |
| Max. Working Temperature: |
120 degree C
|
| Availably size: | DN10-DN150, 3/4"-4"
|
| Availably connection: | Clamp / weld / thread/ weld thread/ flange |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Manual,Pneumatic, E lectric |
| Control: | Sensor, C-TOP, C-top controller(AS-I) |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
| Actuator application: | Stainless steel actuator/ Horizontal pneumatic actuator |
| Application scope: | Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc |
| Packaging Details: | Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers. |
| Delivery d etails: | Usually within 20 days after receiving T/T down payment. |
