Product Name

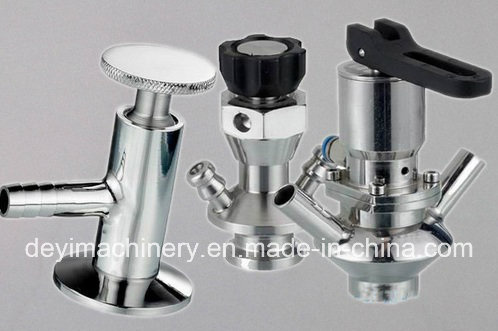

Stainless Steel Sanitary Sample Valves(DY-V038)
Application
its mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains.It is apply for the food, chemical, pharmaceutical, cosmetics and biotechnology industries. As well as all other sectors requiring sanitary type equipment.
Sanitary sampling valve has two configurations.
Sanitary sampling valve adopts PTFE/EPDM seals and is operated by metal hand wheel. It is cost-effective and easy to operate.
Sanitary sampling valve adopts hard-metal seals and can be used for abrasive product sampling. It is operated by plastic hand wheel, and both angle and straight type structures are available.
Feature
304 stainless steel
Silicone O-ring plus plunger to assure a leak proof connection
Surface finish polish to sanitary standards
Recommended usage in wineries
End connections available: clamp and NPT
Sizes available: 1" clamp and 3/8" NPT
Technical specification
Material of Product Wetted | 316L (DIN-1.4404) |
| Material of Non-product Wetted | 304 (DIN-1.4301) |
| Seal material | PTFE/Silicone,PTFE/FPM (PV-1),PTFE (PV-2) |
| All seal materials comply with FDA 177.2600. |
| Continuous working temperature | -20oC +135oC (EPDM) |
| Sterilization temperature | 150oC (Max 20min) |
| Working pressure | 0~10bar |
| Internal surface | Ra0.8μm |
| External surface | Shot blasting |
| Size | 1/2" 3/4" |
