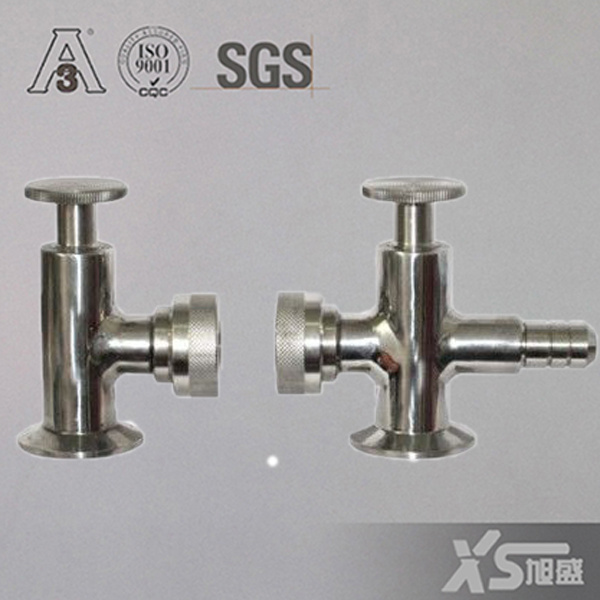

Stainless Steel Sanitary Threading Liquid Level Valve

Stainless Steel Sanitary Threading Liquid Level Valve
Price: US $ 8-10/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Products Name:Stainless Steel Sanitary Threading Liquid Level Valve

Glass tube liquid level gauge and is called liquid level valve, is a kind of liquid level measuring instrument, which is mainly installed in the tank, so as to observe the flow of liquid in the tank. It is suitable for the industrial production process of the liquid position of the general storage equipment in the field test, the structure is simple, accurate measurement, is a traditional measurement tools. By welding the quick assembly of the container, and the container, through the glass tube, the liquid level height of the container is directly displayed.

Working principle
Hand wheel counterclockwise rotation of the valve stem with the sealing ring, the valve is opened at this time, the hand wheel


Component of Stainless Steel Sanitary Threading Liquid Level Valve
1.glass tube
2.the scale
3.the protective sleeve
4.the upper and lower valve
5.the connection quick installation

Technical Datas.
Material QualitySs304, Ss304L ,Ss316, Ss316L
Connection EndsClamping,Threading,Welding,Union,Flange
DiameterDN15,20MM,19MM,25MM,32MM
Working Pressure0.6(Mpa)
Working Temperature-20~180Celsius Degree
Scope of applicationfood machinery, pharmaceutical machinery, stainless steel tank;
Total Length200-6000(MM)
GasketSilicone, EPDM, Viton, NBR, PTFE
Valve thread size1/4", 3/8", 1/2", 3/4"
MediumWater, oil, gas, and other corrosive media
Max.Pressure10Bar
PackagingCarton Case or Plywooden Cases
Functionarranged in the tank body to observe the liquid the flow of liquid in the tank


Packing&Shipping information and pictures of Stainless Steel Sanitary Threading Liquid Level Valve
Port: Shanghai Port or Ningbo Port,China
MOQ: 1 Sets
Supply ability: 1,000 sets/month
Payment terms: T/T,Western Union, Paypal, L/C
Packaging:  Shrink wrapped-in seaworthy wooden cased
Delivery time: depends on quantity
Shipping mode:By sea,by air,by express

Wenzhou Xusheng Machinery Industry Co.,Ltd is a comprehensive and professional manufacturer,being integrating in designing, developing, manufacturing.

We specialize in sanitary valves,pipe fittings and pumps,which is applied for  milk,food,beer,pharmaceutical and other fields.We can quote you favourable price&high quality&best after-sale services.Welcome to visit our factory

1.Sanitary valve
Sanitary Butterfly Valves
Sanitary Check Valves
Sanitary Ball Valvess
Sanitary Reversal Valve
Sanitary Diaphragm Valves
Sanitary Sample Valves
2.Sanitary Pipe Fittings
Sanitary Elbow
Sanitary TeeSanitary Reducer
Sanitary Cross
Sanitary Triclamp Ferrule
Sanitary Cap
Sanitary Pipe Hanger
Sanitary Tank Cleaning Ball
Sanitary Hose Joint
Sanitary Unions
Sanitary Sight Glass
Sanitary Strainer
3.Sanitary Manways
Sanitary Round Manway without Pressure
Sanitary Round Manway with Pressure
Sanitary Square Manway
Sanitary Oval Manway
4.Sanitary Pumps
Sanitary Centrifugal PumpSanitary Lobe Pump
Sanitary Self Priming Pump
5.Sanitary Tanks
Storage Tank
Fermentation Tank
Mixing Tank
Warm-keeping Tank
6.Sanitary Tube
Seamless Tube
Weldless Tube
7.Sanitary Gasket
Silicone/EPDM Gasket for Triclamp
Silicone/EPDM Gasket for Union
Silicone/EPDM Gasket for Butterfly Valve
Silicone/EPDM Gasket for Manhole Cover

Welcome to contact us for Stainless Steel Sanitary Threading Liquid Level Valve
M.B.:0086-13587646794
Prod Model: XS-LG000013
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material Quality: Ss304, Ss304L ,Ss316, Ss316L
Connection Ends: Clamping,Threading,Welding,Union,Flange
Diameter: Dn15,20mm,19mm,25mm,32mm
Working Pressure: 0.6(MPa)
Working Temperature: -20~180celsius Degree
Total Length: 200-6000(mm)
Gasket: Silicone, EPDM, Viton, NBR, PTFE
Scope Of Application: Food Machinery, Pharmaceutical Machinery, Stainles
Function: Arranged in The Tank Body to Observe The Liquid
Founded in 2005, Wenzhou Xusheng Machinery Industry and Trading Co., Ltd is a modern enterprise which integrates scientificResearch and production. We are one of the new manufactures which are capable of producing high precision stainless steelSanitary equipment and pipeline connection parts.

Xusheng can provide a variety of products, such as sanitary manual/pneumatic butterfly valve, sanitary check valve, sanitaryDiaphragm valve, sanitary ball valve, thin wall visual mirror sanitarypipe fitting, sanitary manhole cover, sanitary pump and otherRelated products. All Xusheng products can be made according to different materials and industrials standard, such as SMS, DIN. 3A, ISO, RJT, IDF, BS, DS and BPE. Our products are widely applied to dairy, food, beer, beverage, pharmacy and cosmetic industries. All technical aspects have reached the international leading levels and are in conformance with GMP requirements.

Xusheng applies the most advanced CNC machine from Japan for processing, cutting machines, automatic equipment, completeInspection equipment, Excellent quality control system, an after-sale service center and strong production capacity. It makes eachXusheng products go to forefront of our line and shortens the quality gap between imported equipment as well as accessories.

We persist in the principle of "Quality First, Customer Satisfaction" and will create more excellent liquid fittings to meet customers'Requirement by full Passion and first-class service. Moreover, we can also design according to your drawing and samples.

We believe that sincere service and good quality will let you cooperate with us and achieve mutual benefits, we welcome worldwide. Friends to give us more Supports and suggestions! !
