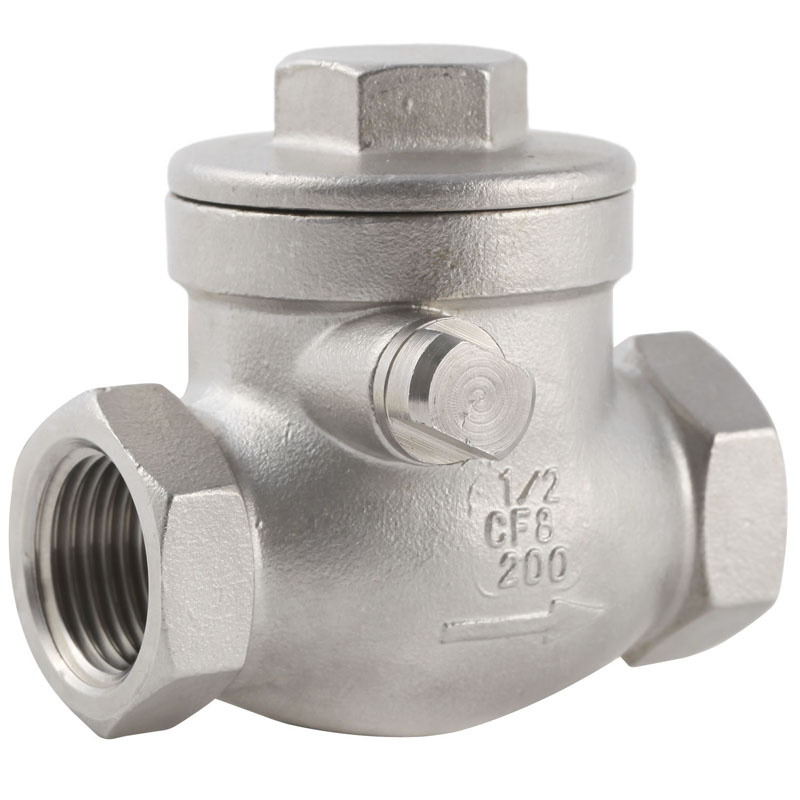

Stainless Steel Screwed Swing Check Valve
| Price: |
US $ 30-10000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Set |
| Pay Type: |
L/C,T/T |
Investment Casting Screwed Swing Check Valves-Precision casting threaded swing check valveSpecifications:
1) Size: 1/2" to 3"
2) Threaded: BSPT, BSP(BS21), NPT(B1.20.1), DIN2999/259,ISO228-1,ISO7/1
3) Working pressure: 200PSI/PN16
4) Type: Inside screwed cap, swing type disc, integral seat, full bore
5) Material: CF8 and CF8M
6) Investment Casting body and cap.
7) Inspection testing:API598Stainless Steel Swing Check Valves Class 200, Threaded endDescription:
Investment casting body / cap
Materials: ASTM A351-CF8M
Pressure temperature rating: 200 PSI /(PN16)
Pressure temperature rating: 350 deg. F
Screwed cap, swing type disc, integral seat
Threaded end: BSPT, NPT, DIN259 and DIN2999Standard materials of parts| Item | Parts | Material |
| 1 | Cap | CF8M |
| 2 | Gasket | PTFE |
| 3 | Body | CF8M |
| 4 | Hanger pin | SS304 |
| 5 | Plug gasket | PTFE |
| 6 | Plug | SS304 |
| 7 | Disc | CF8M |
Dimensions (in mm & inch) and weight| Size | D | L | H |
| 1/2" | 15 | 65 | 43 |
| 3/4" | 20 | 80 | 53 |
| 1" | 25 | 90 | 60 |
| 1.1/4" | 32 | 105 | 60 |
| 1.1/2" | 40 | 120 | 75 |
| 2" | 50 | 140 | 79 |
| Prod Model: |
SS SCRD SWING CHECK VALVE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2" to 3" |
| Thread: |
BS21,B1.20.1,DIN2999/259,ISO288-1,ISO7/1 |
| Casting: |
Investment Casting/Precision Casting |
| Material: |
Stainless Steel |
| Connection Form: |
Thread |
| Structure: |
Swing |
| Application: |
Industrial Usage |
| Pressure: |
200psi/Pn16 |
| Function: |
Non Return |
| Sealing Form: |
Swing Check |
