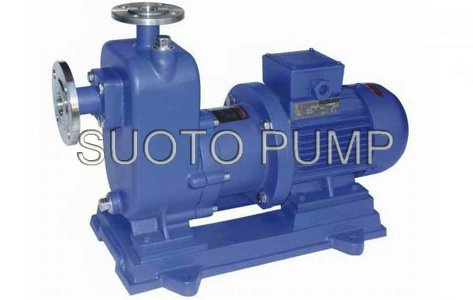

Stainless Steel Self Priming Magnetic Pump (ZCQ)
| Price: |
US $ 150-1200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
OverviewZCQ type self-priming magnetic drive pump is the new product tested and researched on the basis of CQ type magnetic power drive pump and absorbed the advanced international technique by the technicians of our company according to the requirement of our customers.
AdvantagesThe pump not only has the character of CQ type magnetic power drive pump that is whole sealed, no leak and corrosion resistant, but also is self-priming, no need foot valve, the self-priming height is 4m. It can be widely used to petroleum, chemistry, pharmacy, electroplate, printing and dyeing, food, science research and other units. It is applicable to pump and transport the acid, alkaline liquid, oil, rare expensive liquid, poisonous liquid, volatile liquid and water circulation equipment, especially the pumping and transportation of the flammable, leaky and explosive liquid.
Performance Parameters| Model | Diameter | Head(m ) | Capacity(l/min) | Power(kw) | Speed(r/min) | Votage(v) | Self-priming time
(m 3 /min) |
| Inlet | Outlet |
| ZCQ20-12-110 | 20 | 15 | 12 | 50 | 0.37 | 2900 | 380 | 4 |
| ZCQ25-20-115 | 25 | 20 | 15 | 110 | 1.1 | 2900 | 380 | 4 |
| ZCQ32-25-115 | 32 | 25 | 15 | 110 | 1.1 | 2900 | 380 | 4 |
| ZCQ32-25-145 | 32 | 25 | 25 | 80 | 1.1 | 2900 | 380 | 4 |
| ZCQ40-32-132 | 40 | 32 | 20 | 180 | 2.2 | 2900 | 380 | 4 |
| ZCQ40-32-160 | 40 | 32 | 32 | 180 | 4 | 2900 | 380 | 4 |
| ZCQ50-40-145 | 50 | 40 | 25 | 240 | 4 | 2900 | 380 | 4 |
| ZCQ50-40-160 | 50 | 40 | 32 | 220 | 4 | 2900 | 380 | 4 |
| ZCQ50-40-200 | 50 | 40 | 50 | 130 | 5.5 | 2900 | 380 | 4 |
| ZCQ65-50-145 | 65 | 50 | 25 | 280 | 5.5 | 2900 | 380 | 4 |
| ZCQ65-50-160 | 65 | 50 | 32 | 450 | 7.5 | 2900 | 380 | 4 |
| ZCQ80-65-125 | 80 | 65 | 20 | 800 | 7.5 | 2900 | 380 | 4 |
| ZCQ80-65-160 | 80 | 65 | 32 | 800 | 15 | 2900 | 380 | 4 |
| ZCQ100-80-160 | 100 | 80 | 32 | 1700 | 22 | 2900 | 380 | 4 |
| Prod Model: |
ZCQ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Driven: |
Magnetic Pump |
| Structure: |
Back Pull out |
| Shaft Seal: |
N/a |
| Type: |
Self-priming Pump With Inner Recirculation |
| Theory: |
Jet-flow |
| Transmission: |
Direct Connection Transmission |
| Air Engine Type: |
Fitted Motor |
