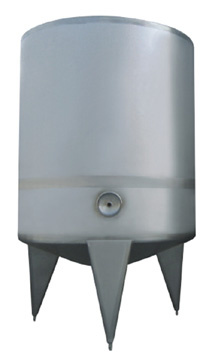

Stainless Steel Single-Layer Storage Tank
Price: |
Negotiable |
Trade Terms: |
FOB |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |
Single-layer storage tank
Application field:
1. Single-layer storage tank is usually used for storage water tank, storage liquid tank, temporary storage tank, etc.
2. Suitable for such fields as dairy, juice, beverage, medicine chemical or bio-engineering project, etc.
Structure: 1. Single layer structure 2. Material of tank is stainless steel
Standard scheme:
1. Quick open manhole
2. Numeral indication type thermometer
3. T type cleaning head
4. Hauling lever style releasing valve
5. Adjustable taper branch feet.
Model |
Normal volume(L) |
Diameter(mm) |
Hight (mm) |
Diameter of inlet outlet |
SSG -600 |
600 |
900 |
2140 |
38 |
SSG -1 |
1000 |
1050 |
2380 |
38 |
SSG -1.5 |
1500 |
1180 |
2550 |
38 |
SSG -2 |
2000 |
1340 |
2760 |
51 |
SSG -2.5 |
2500 |
1420 |
2940 |
51 |
SSG -3 |
3000 |
1540 |
3050 |
51 |
SSG -3.5 |
3500 |
1600 |
3180 |
51 |
SSG -4 |
4000 |
1650 |
3200 |
51 |
SSG -5 |
5000 |
1780 |
3250 |
51 |
SSG -8 |
8000 |
2100 |
3900 |
51 |
SSG -10 |
10000 |
2300 |
4050 |
65 |
SSG -15 |
15000 |
2650 |
4450 |
65 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
Product Type: |
Subsidiary Food |
Material: |
Farm Product |
Manufacturing Process: |
Stainless Processing |
Ingredient: |
Stainless Steel |
Type: |
Beverage Machinery |
Jimei company was established in 1989, and for years we have been focusing on the improvement in machinery theory and performance in the food machinery industry. We have passed ISO9001, National GMP Technology Standard Evaluation, inspections by National Pharmaceutical Equipment Inspection Center, and all products are designed and manufactured strictly according to standards such as ISO, SMS, IDF, DIN, QB/T2003, 2004, 3A as well as our internal standards.
We are a company integrating scientific research, manufacturing and service, and have the best manufacturing facilities and production process, professional staffs, imported facilities of concentration distill series, automatic CIP series, PLC control etc. Now we have been a market leader in the Chinese food machinery industry. The company keeps in mind the tenet of "serving users" and focus on research and development of new technologies. It has comprehensive development capacity and sound quality assurance system, and has made R&D achievement and obtained invention patents. Our machinery are widely sold in China, and exported through our sister compang in group (Shanghai Runrong International Trade Co., Ltd)to Asia, Europe, America, Africa, over 50 countries, and gained favorable feedback from users. Major projects include milk preliminary handling, UHT pipe, plate bacteria killing machines, bacteria-free liquid soft packing machine, gable-top paper box filling machine, that combine to form diary production line, beverage production line, biological engineering production line. We have provided products to the following famous companies: Taizinai, Wahaha, Sanlu, Bright, Danone, Mengliu, Coca Cola, PepsiCola, Yingxiong etc.
