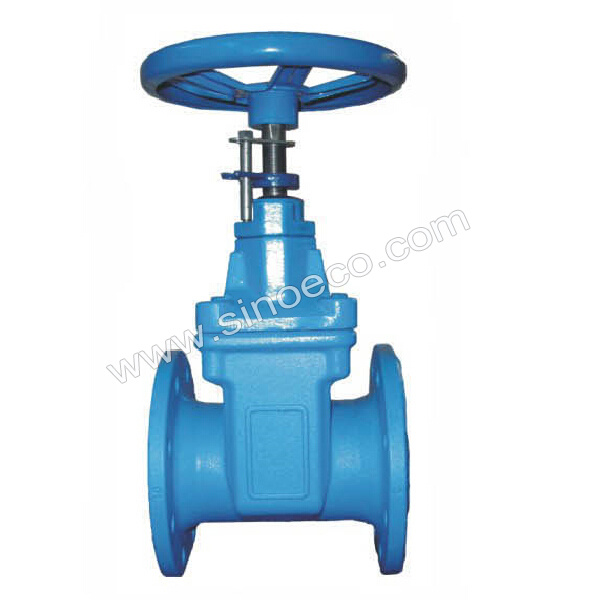

Stainless Steel Soft Seal Gate Valve
Technical Specification :
1.Size:DN50-DN600
2. Pressure:PN10-PN16
3.Design Standard:API 602,BS 5163,ASME B16.34
4.Face to Face Standard:BS5163
6.End Connections :Flanged& Wafer
7.Test Standard: BS5163
8. Operated way : Hand wheel, Electric Actuator
Material:
Num | Name | Material |
1 | Stem | 2Cr13 |
2 | Gland | Ductile Iron |
3 | "O" Ring | NBR |
4 | "O" Ring | NBR |
5 | Splint Collar | Iron+ Electroplate |
6 | Gland Nuts | Steel 8.8+Wax |
7 | Stem Nut | Brass |
8 | Wedge | Ductile Iron+ EPDM |
9 | Bonnet | Ductile Iron |
10 | Nuts | Steel 8.8+Wax |
11 | Middle Gasket | NBR |
12 | Body | Ductile Iron |
13 | Hand wheel | Ductile Iron |
Ningbo Free Trade Zone ECO International Co., Ltd is a professional supplier of meters in China since year 2000.
We not only supply quality meters and matching accessories, but also join to develop and improve products. We are a team with professional instrument/meter technology knowledge.
Our Professional and TOP products are:
---Water supply system: Water meter with ISO9001 &1SO4064, brass/stainless/UPVC valves, pipes &pipefittings, etc.
---Electric supply system: Electric meter with KEMA, transformer, etc.
---Gas supply system: Gas meter with EN1359 &Atex Report, valves, etc.
---Heat system: Heat meter, radiator, valves. Et
Other products:
---Pumps
---Auto Parts, Car Accessories
---PU Tube, PVC Tube, PO tube
---Caster Wheels
For all of these products, we are cooperating with specific professional ISO 9001 manufacturers. We assure strictly quality controlling, considerate service & competitive prices.
Your enquires are warmly welcome and will receive our immediate attention!
