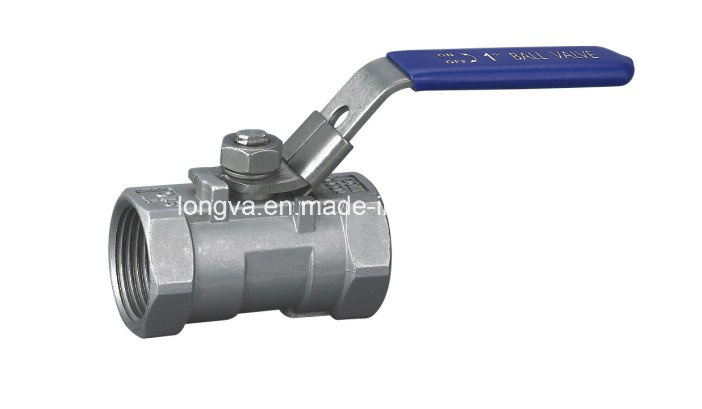

Ss female threaded 1-PC Ball Valve
1. Blow-out Proof Stem
2. Investment Casting Body
3. Pressure Balance Hole in Ball Slot
4. Anti-Static Device Upon Request
5. Various Connection End Standard Available
6. Locking Device Available
7. ISO-5211 Mounting Pad for Actuator Available
Specifications
1). Size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
2). Material: 201/304/316/304L/316L/WCB/CF8/CF8M/CF3/CF3M
3). Seat Material: PTFE, RPTFE (15% Glass Fiber), RPTFE (25% Carbon Fiber), PPL etc.
4). Pressure: 1000WOG/1000PSI, 1.6-604Mpa
5). Medium Temp.: -20° C~+180° C
6). Ambient Temp.: -20° C~+60° C
7). Availably Connection: NPT, BSP, BSPT, DIN259/2999, SW, BW, Clamp, Flanged
8). Port: Reduced Port
9). Handle: Lever Handle, Locking Device Handle Upon Request.
10). ISO-5211 Mounting Pad for Actuator (Option)
11). Operation: Manual, Pneumatic, Electric
12). Suitable Medium: Water, Gas, Oil, Air and Some Corrosive Liquid
13). Design Standard: ASME B16.34
14). Inspection and Testing: API 598
Contact
Thanks for your visiting.
If you have any questions about our products or company, please do not hesitate to contact us.
Contact Person: Ada hu
Brand: KT/OEM
Applicable Media: Water, Oil, Gas, Nitric Acid, Acetic Acid
Normal Pressure: 1000PSI / 1000WOG
Strength Testing Pressure: PT 2.4, 3.8, 6.0, 9.6Mpa
Seat Testing Pressure(Low Pressure): 0.6Mpa
Applicable Temp: -20° C-180° C
Certification: CE/API/DNV/FDA/ISO9001-2008
Sample Testing: One Sample for free( Under $10), Freight Collect
Packing: Plastic Bag, Carton & Plywood Case/According to customers' requirement.
Payment: T/T, L/C, D/P, Western Union, Paypal
Port: NINGBO/SHANGHAI, Customers' Request
Delivery Time: Within 35days after receiving T/T deposit Payment
Term of Delivery: FOB/CNF/CIF, Customers' Request
