Stainless Steel Threaded 1PC/2PC/3PC Ball Valve
Features
1. Blow-out Proof Stem
2. Investment Casting Body
3. Pressure Balance Hole in Ball Slot
4. Anti-Static Device Upon Request
5. Various Connection End Standard Available
6. Locking Device Available
7. ISO-5211 Mounting Pad for Actuator Available
Specifications
1). Size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
2). Material: 201/304/316/304L/316L/WCB/CF8/CF8M/CF3/CF3M
3). Seat Material: PTFE, RPTFE (15% Glass Fiber), RPTFE (25% Carbon Fiber), PPL etc.
4). Pressure: 1000WOG/1000PSI, 1.6-6.4Mpa
5). Medium Temp.: -20° C~+180° C
6). Ambient Temp.: -20° C~+60° C
7). Availably Connection: NPT, BSP, BSPT, DIN259/2999, SW, BW, Clamp, Flanged
8). Port: Full Port, Reduced Port
9). Handle: Lever Handle, Locking Device Handle Upon Request.
10). ISO-5211 Mounting Pad for Actuator (option)
11). Operation: Manual, Pneumatic, Electric
12). Suitable Medium: Water, Oil, Air and Some Corrosive Liquid
13). Design Standard: ASME B16.34
14). Inspection and Testing: API 598

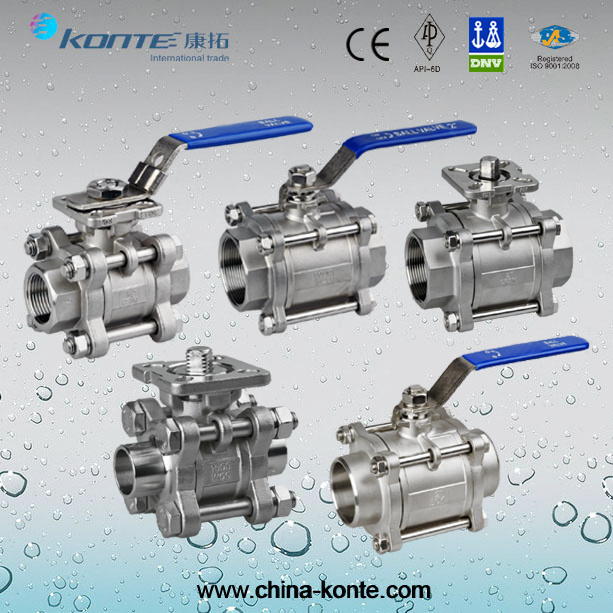

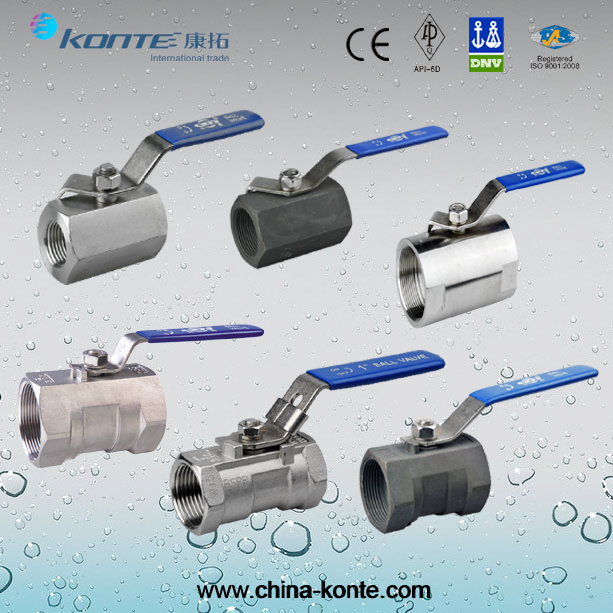

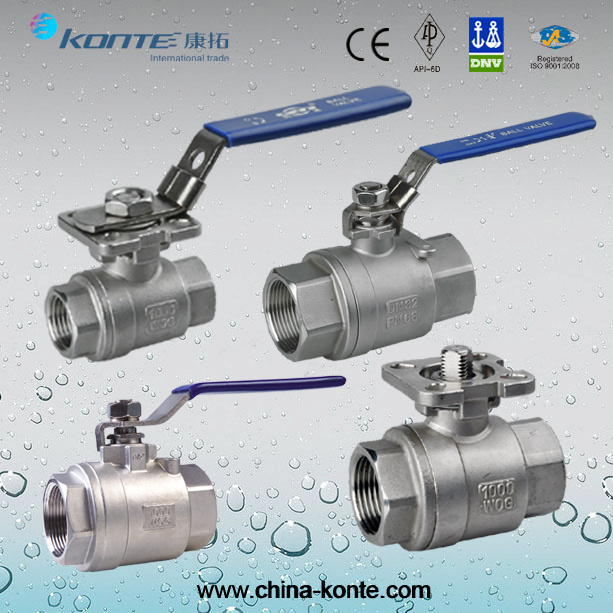

Products
Packing Show
Thanks for your visiting.
If you have any questions about our products or company, please do not hesitate to contact
| Brand: | KT/OEM |
| Applicable Media: | Q11F-(16-64)C: Water, Oil, Gas |
| Q11F-(16-64)P: Nitric Acid | |
| Q11F-(16-64)R: Acetic Acid | |
| Normal Pressure: | 1000PSI/ PN1.6,2.5,4.0,6.4Mpa |
| Strength Testing Pressure: | PT 2.4,3.8,6.0,9.6Mpa |
| Seat Testing Pressure(Low Pressure): | 0.6Mpa |
| Applicable Temp: | -20°C-180°C |
| Certification: | ISO9001-2008/CE/TS |
| Sample Testing: | One Sample for free( Under $10),Freight Collect |
| Packing: | Plastic Bag, Carton & Plywood Cases/According to customers' requirement. |
| Payment: | Usually T/T, but L/C also acceptable. |
| Port: | NINGBO/SHANGHAI, Customers' Request |
| Delivery Time: | Usually Within 35days after receiving T/T deposit Payment |
| Term of Delivery: | FOB/CNF/CIF, Customers' Request |
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Size: | 3/8"-5" |
| Place Of Origin: | Zhejiang |
| Ball Assembly: | Side Entry |
| Availably Connection: | NPT, Bsp, BSPT, DIN259/2999, Sw, Bw, Clamp, Flange |
| Port: | Full Port, Reduced Port |
| Operation: | Manual, Pneumatic, Electric |
| Connection Form: | Thread |
| Channel: | Straight Through Type |
| Structure: | Floating Ball Valve |
| Type: | Floating Ball Valve |
| Material: | Stainless Steel |
| Application: | Household Usage |
