Quick Details
Standard or Nonstandard: Standard
Structure: Gate
Pressure: Low Pressure
Power: hydraulic,pneumatic,manual,solenoid
Material: Stainless Steel
Temperature of Media: High Temperature
Media: Water, air, oil products, corrosive liquid
Port Size: 1/2"-2"
Place of Origin: China (Mainland)
Model Number: ss gate valve
Brand Name: ACE
product: Gate valve
color: available
connection: thread,npt,fnpt,flange
Packaging & Delivery
Packaging Details: | Plastic first, then carton, last in pallet will be ok, or as per your requirement. |
---|
Delivery Detail: | Within 5-15 days after you confirming the order. |
---|
Specifications
1.Gate valve.
2.Pressure:150~300lbs.
3.size:1/2"-2".
4.ISO9001 certification.

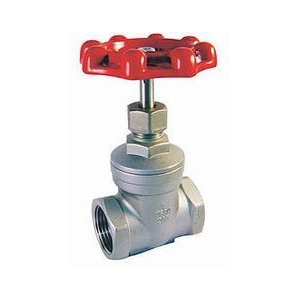

Gate valve.
Specifications:
1) Sizes: 1/2"- 2"
2) Pressure 150~300lbs
3) Suitable temperature: -28 ~ 425oC
4) Suitable medium: Water, steam, oil products, nitric acid, acetic acid
5) Body material: CS, CI, FS, DI, SS316, SS304, Brass
6) Connection: SW, BW, NPT, Flange
7)Applicable Medium: nitric, acetic acid, water, oil, gas and some corrosive liquids.
MATERIAL LIST |
No | Part Name | Material |
1 | Body | CF8M | CF8 |
2 | Disc | CF8M | CF8 |
3 | Seal Ring | SS316 | SS316 |
4 | Snap Spring | 316 |
5 | Washer | PTFE |
6 | Stem | CF8M | CF8 |
7 | Bonnet | SS316 | SS304 |
8 | PTFE | PTFE |
9 | Gasket | PTFE |
10 | Gland Nut | SS316 |
11 | Handwheel | HT(C.R) |
12 | Nut | SS316 |
DIMENSION LIST |
NPS | d | H | L | W |
1/2 | 15 | 105 | 50 | 70 |
3/4 | 20 | 108 | 60 | 70 |
1 | 25 | 135 | 65 | 80 |
1-1/4 | 32 | 145 | 75 | 80 |
1-1/2 | 40 | 155 | 85 | 90 |
2 | 50 | 185 | 95 | 100 |
ACE industry Co., Ltd. is a professional manufacturer for OEM parts, including OEM metal stamping, pressing, punching, casting, forging, machining, deep drawn and stamped-welded products with various surface treatments, etc. Our products are exported to USA, Canada, France, Italy, Spain, Holland and other markets, which are used in machining, construction, electronics, furniture, etc.
Our office lies in Shanghai which can help us to offer better service for the customers from all over the world. Our factory is located in Zhejiang province, nearby Ningbo port and Shanghai port, which can save goods transportation time and cost.
We have full range of advanced machinery and equipments: punching machines, welding, CNC machines, milling & grinding machines. And we also have experienced technical staffs, who are engaged in technical development. Our skilled workers, professional engineers, R&D center and excellent foreign trade team always keep the passion to support our customers.
ACE always insist on the concept of quality first & customer foremost, and provide high quality products, reasonable price, timely delivery and good service for customers. We hope to be your office in China.
