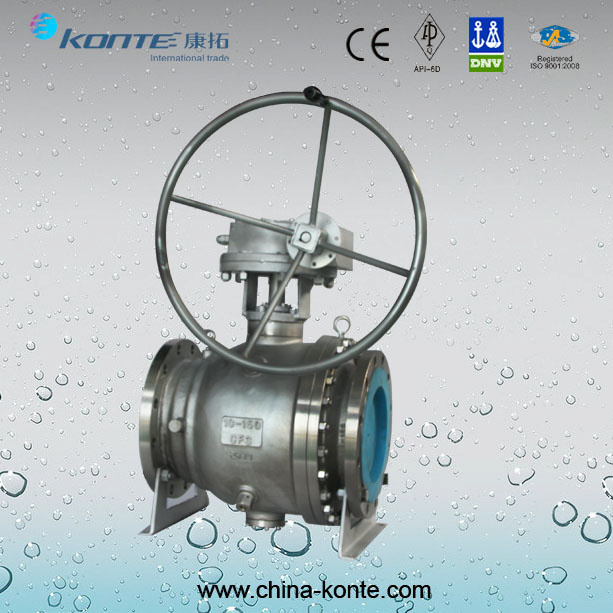

Stainless Steel Trunnion Ball Valve CF3
Features
1. Two-piece Stainless Steel Body
2. Available with Bi-directional Sealed
3. Trunnion Ball Structure
4. Full Port / Reduced Port
5. Blow-out Proof Stem
6. Various Connection End Standard Available
7. Inner Stem Seals Provide a Reliable Combination of Bearing and Pressurized Stem Seal
8. Assisted by Line Pressure, Provides a Constant Mechanical Force on Ball Against Seat to Maintain Seal
9. Available with Manual Operation or Automized with Actuators.
Specifications
1). Size: 1-1/2"-36"
2). Material: Stainless Steel, CF8, CF8M, CF3, CF3M, 304, 316, 304L, 316L
3). Seat Material: Co-based Alloy, Ni-base Alloy, Tungsten Carbide and Chromium Carbide
4). Pressure: PN16-PN110, 150LB-600LB
5). Availably Connection: Flanged, SW, BW, Clamped
6). Port: Full Port / Reduced Port
7). Operation: Manual, Pneumatic, Electric
8). Suitable Medium: Heavy Particle Media, Corrosive Media
9). Applications: Petrochemical Industry, Oil Fields, Metallurgy, Coal Chemical Industry, Power Station,
Solar Energy Industry, Paper Making Industry, Pharmacy Industry, Mining Industry etc
10). Design Standard: ASME B16.34
11). Inspection and Testing: API 598
