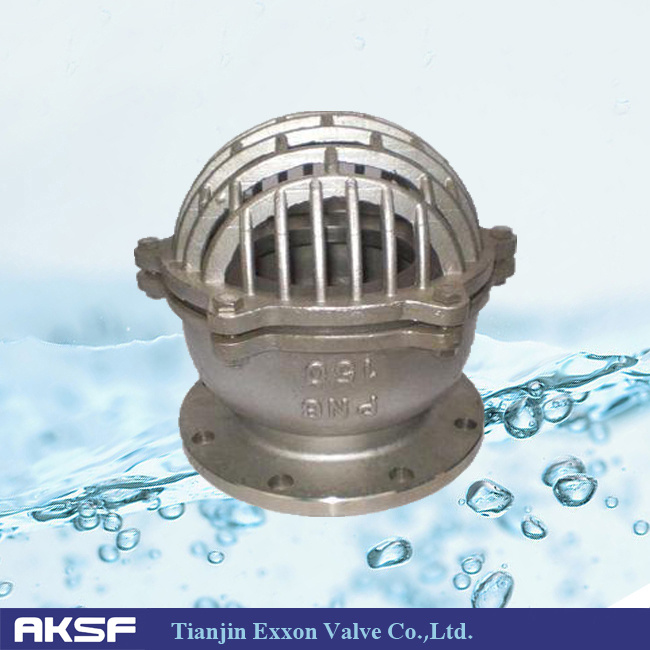

Flange foot valve
Key Specifications/Special Features:
Connection Form: Flange, screw and weld
Material: Materials: Carbon steel WCB, stainless steel, 304, CF8, 316 or CF8M
Structure: Swing
Function: Non-Return,
Applicable medium: Water, Oil, Gas, etc
Size: 1/2"-16"
Pressure: ANSI 150LB~600LB, JIS 10K~20K
Packing: Woodcase
Introduction
Foot valve is a kind of energy-saving valve, usually installed at the bottom of pump suction pipe, to prevent medium in the pipe flow back to water source. There are many inlet holes and reinforcing ribs in the valve cover, so the pipe will not be easily clogged up.
Working Principle
Foot valve consists of bonnet, disc, bush, seal-ring, etc. Water enter into the valve body through bonnet. Under the influence of flow pressure, disc will be opened. When stop, pressure in the outlet pipe will close the disc instantly, water will not flow back to water source. It effects the functions of smooth pumping and saves water loss.
Tianjin Exxon Valve Co., Ltd. Offers several styles of Rubber Lined Concentric Butterfly Valves, Resilient Seated Gate Valves and Soft Seated Dual Plate Check Valves to meet your requirements. We would like to help you choose the correct valve style according to the process conditions and system needs of the valves.
Our company has a comprehensive computer-aided design systems and sophisticated computer numerically equipment in production, processing and testing. We are strictly according to the international quality system standard ISO9001 for production.
We specialize in soft sealed butterfly valves and gate valves of wafer type, flange type and groove type, which are widely applied in petroleum, chemical, natural gas, food, water supply and other industrial areas.
The valves of EXXON are highly appreciated at home and abroad. Even though there is a fierce competition in the market nowadays, EXXON obtains a steady and efficient development being guided by our manage principle, that is, guided by the science & technology, guaranteed by the quality, adhere to sincerity and target at excellent service...
We persist in the pursuit of excellence, strive to build EXXON brand. Great effort will be made to achieve common progress and development with all of you and creating a better future.
