Name: Stainless steel water pump PN10 foot valve
Size | DN32 - DN200 |
| Material | Stainless Steel, Carton steel |
| Standard | ISO, DIN, IDF, SMS, 3A |
| Connection End | Thread, Flange |
| Working Principle | By manual |
| Pressure | 0.6-2.5Mpa |
Foot valve is a kind of energy-saving valve, usually installed at the bottom of pump suction pipe, to prevent medium in the pipe flow back to water source. There are many inlet holes and reinforcing ribs in the valve cover, so the pipe will not be easily clogged up.

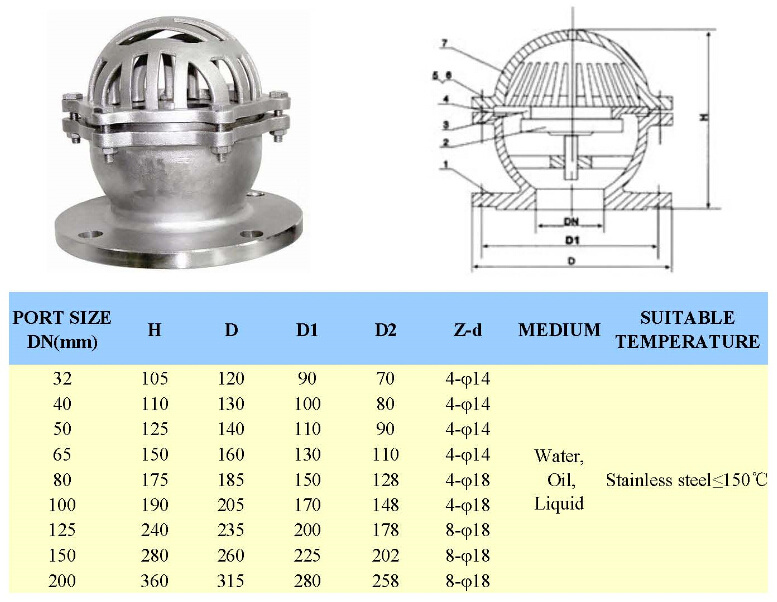

Foot valve consists of bonnet, disc, bush, seal-ring, etc. Water enter into the valve body through bonnet. Under the influence of flow pressure, disc will be opened. When stop, pressure in the outlet pipe will close the disc instantly, water will not flow back to water source. It effects the functions of smooth pumping and saves water loss.
Wenzhou longva light industrial machinery Co., Ltd.(longva group., Co., Ltd) is a research, development, production, sales as one of the modern enterprise.We have top-ranking engineer with health-class high-precision production equipment, professional at stainless steel valves, pipe fittings, pipe connectors, faucets and so on.Our products export to more than 30countries, and get well reputation.We have our own export licence.
The products are manufactured according to the industrial standard of ISO, DIN, idf SMS and 3A, are widely used for breast, beer, pharmacy, biology, chemical industry, drink, food and cosmetics such industries.Our enterprise has passed ISO9001-2000 international quality managing system authentication, the products are according with GMP, HACCP and QS.
Firm and persistent longva human will strive continuously, absorb national and foreign advanced technical high diathesis professionals to intensify the inner management and grand the team, so as to attend the global competition with active pose and rich strength to provide and better for customers.
Our quality comes from our efforts!With superior products, reasonable price and satisfactory services, our company welcome your visiting and sincerely await your arrival.
