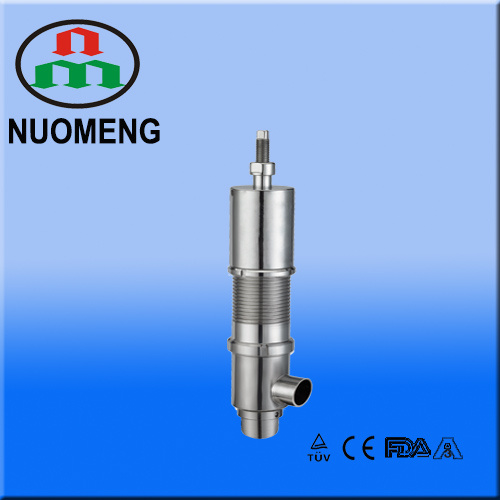

Stainless Steel Welded Safety Valve (DIN-No. RA1002)

Stainless Steel Welded Safety Valve (DIN-No. RA1002)
Price: US $ 270-783.5/Piece
Trade Terms: FOB,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T
Sanitary Stainless Steel Welded Safety Valve


Connection: Weld. NUOMENG offers clamp or union safety valve.

Application:
RA series safety valve is the sanitary stainless steel valve,its safety design make it protect the equipment,so it installed  in the return circuit of discharge pressure,it's good for safety protect function in pipeline ,pump ,device,storage tank.This valve extensively use to food ,beverage,dairy,beer etc.

Working Principle
RA series safety valve is calibration one specific pressure by adjust gland nut.calibration pressure is the max.safety pressure in order to avoid equipment damage.Under the normal working pressure,the valve is close:When the pressure of system beyond the calibration pressure,the valve will be open .The pressure in the pipeline system get release,thus protect the pipeline and equipment.
RA11 series valve is the improve type of RA,it add the start and open device,it is easy to doing CIP cleaning for safety is a little special valve,it through strict calibration before leave factory ,but if have conditional ,should be calibration the valve again in locate as far as possible.
DIN-No.RA1002L1L2GKD
DN25210.049.0RD52*1/650.528.0
DN32220.049.0RD58*1/650.535.0
DN40230.052.5RD65*1/650.540.0
DN50240.061.5RD78*1/664.052.0

Prod Model: RA1002
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Steel Parts: Stainless Steel 304,316L
Seal: Rubber
WenZhou NUOMENG Technology Co., Ltd. is a factory which professionally produces high precision liquid equipments in China. The brand "NUOMENG" has highly valued from customer all over the world.

In these years, under their technicians' hard work, the company introduced in advanced LG MAZAK CNC machines, and produce mainly NUOMENG hot-pressed end tie-ins, valves and so on. All of our products produced according to the techenical parameter provided by our customers, and strictly according to ISO, DIN, IDF, 3A and SMS industrial standards. All technical guidelines keep ahead in this industry and reach international advanced standards. The products are widely used in pharmacy, beer, food, dairy, beverage, cosmetics, chemical industries and so on.

Facing furious market competition, the company takes "Creat best quality, satisfy customers" as its duty, and "Honesty, Trust" as basic principles all the time. Enduring business waves, the company is developing and enlarging constantly.

Our quality is from our efforts! Based on high quality products, competitive price, and satisfactory service, the company sincerely welcomes friends around the world to cooperate and achieve mutual success!
