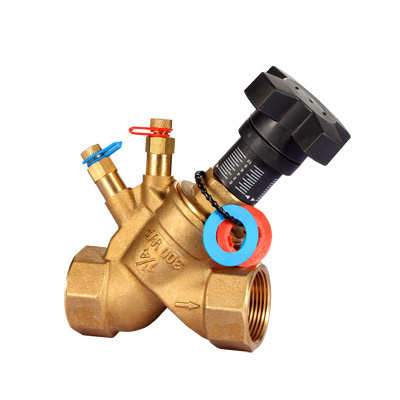

Pren MSV-T static balancing valve which is made of bronze is applied to the hydraulic balance of duplexure in a system. The 45valve handle considerably enlarges the currency, which make it easy to install and debug. Besides, the flow measuring accuracy has been largely improved. It helps the engineer in improving the debugging during the process.
Features:
Applied in air-conditioning balancing system, distribute and shut off of each parallel connection pipes. Avoid any flux distribution unevenly and any unnecessary power consumption occurred.
Double O-ring test nipple, self seals preventing from leakage.
Digital display, which make it easier for debugging and setting.
It has functioned of locked up setting.
|
Material |
|
|
Valve Body |
Bronze |
|
Valve Deck |
Bronze |
|
Valve Handle |
Reinforced Nylon |
|
Sealing Element |
EPDM |
Asbestos is not contained in sealing. |
|
Technical Parameter |
|
|
Nominal Pressure |
PN16/PN25 |
|
Max. Testing Pressure |
3.2MPa |
|
Max. Operating Differential Pressure |
1.6 MPa/2.5 MPa()(Limited by the noise level) |
|
Medium Temperature Range |
-10-120C |
|
Caliber |
DN15-DN40 |
|
Connection |
Thread Connection |
|
Applicable Medium |
Mixture of Water and Ethylene Glycol |
|
Caliber |
Kvs(cv)-valve |
Dimension |
|
D |
H |
L |
T |
|
DN15 |
3.8(4.5) |
1/2" |
114 |
80 |
13 |
|
DN20 |
6.4(7.49) |
3/4" |
116 |
84 |
15 |
|
DN25 |
8.9(10.4) |
1" |
119 |
98 |
17 |
|
DN32 |
19.5(22.8) |
1 1/4" |
136 |
110 |
19 |
|
DN40 |
27.5(32.2) |
1 1/2" |
138 |
120 |
19 |
