Solenoid valves, which are used to shut off, release, dose, distribute or mix fluids, control the flow of air or gas media in a wide range of industries such as: Medical, energy, transportation, processing and other related fields.
STC solenoid valves, which are power-saving and of compact design, are electromechanically engineered of fast and safe switching, premium reliability, superior performance, long service life, and excellent medium compatibility of the materials used. Such top value valves are available in a variety of configurations and materials to handle the most demanding operating environments and applications.
STC valves are compatible with Asco & SMC & Parker valves.
|

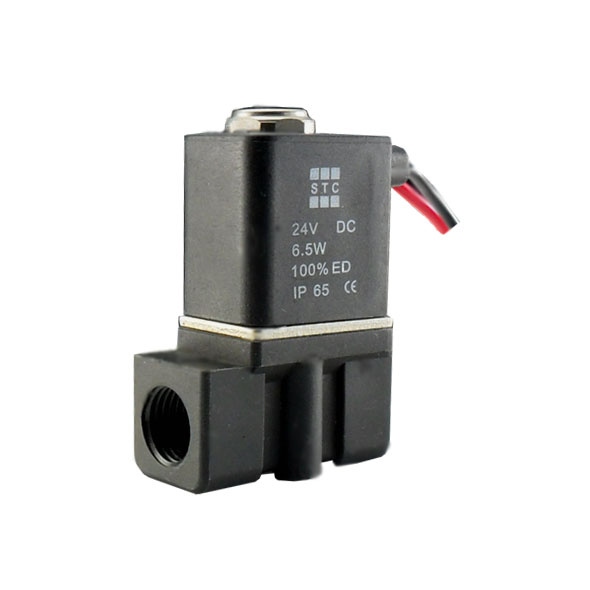

2P Series Valve Specifications |
|
Port & Mounting |
Body Ported |
|
Action & Motion |
Direct Acting, Normally Closed, Two Position, 2 to 3 Way |
|
Operating Pressure |
28" Hg to 115 PSI (Coil Wattage Dependent) |
|
Work i ng Medium |
air, inert gas & liquid |
|
Maximum Pressure |
150 PSI |
|
Operating Temperature |
(-5 to 80 Deg. C) with non-freezing medium |
|
Coil Insulation & Protection Class |
F Class, IP65 (CE Certification) |
|
Coil Duty Cycle |
100% ED |
|
Electrical Connection |
D = DIN (with LED indicator, conduit terminal)
G = Grommet (12” Lead Wire) |
|
Body Material |
PA66 (Nylon, Engineered Plastic) |
|
Seal Material |
NBR (Buna N) |
|
Armature Tube |
Brass |
|
Plunger & Spring |
Stainless steel |
STC is a professional and experienced manufacturer in the field of design, development, producing and marketing of high quality valves and fittings, including solenoid valves, stainless steel fittings, air valves, process valves, air pressure regulators, air cylinders and push-in fittings.
Certified by ISO9001: 2008, STC places the highest emphasis on strict supervision, inspection and control of each procedure: From raw material supply to production, industrial design to management, and market investigation to customer service. Furthermore, STC's facilities are electronically linked, around the clock and around the world, to provide you with responsive service. Our continually updated databases, along with the intensive and extensive attention to the pneumatic industry, keep us in contact with the most innovative technique and enable us to offer an ever expanding range of products to meet your requirements.
With her headquarter in the USA, STC takes the advantage of bringing in American professional expertise and engineering, which work together with Chinese advanced equipment, technique and craftwork to ensure products of satisfactory quality, attractive design, competitive price and user-friendly application. In order to meet the ever-changing market demands, STC is equipped to provide private labeled and customized products with special and stringent requirements in quality, pricing, support and service as well.
Supported by an extensive network of distributors in the United States, Canada, South America, and Asia, STC enjoys outstanding growth and development. Currently, we are seeking representatives in your area to distribute STC products and we would like to invite you to join our distribution network. STC welcomes your inquiry and cooperation and looks forward to assisting you with all your import needs.
