Application: Ironing, steam generator, steam boiler in general.
Feature: With adjustment to control flowrate

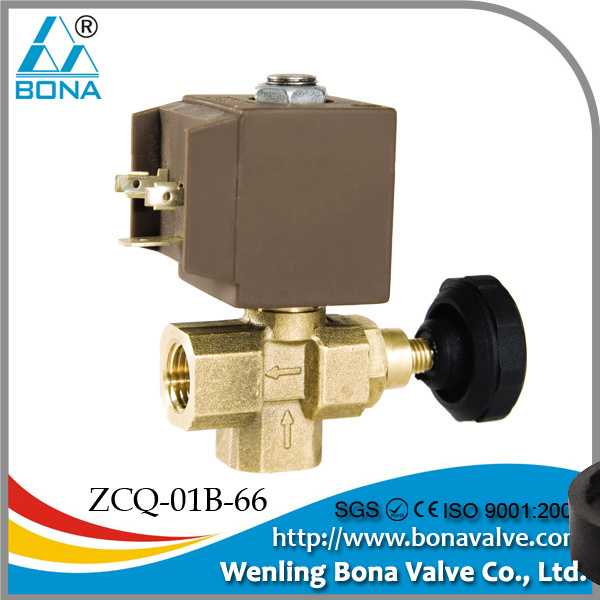

Name: Ironing solenoid valve, steam solenoid valve, water solenoid valve, liquid solenoid valve and so on.
Description:
Pressure: Normal Pressure
Temperature of Media: High Temperature
Power: Solenoid
Structure: Shutoff
Remark: We accept your LOGO laser on coils.
| Additional function: | Flow control |
| Port size: | Female 1/4" (NPT upon request) |
| Port NO.: | 2/2way |
| On-off state: | Normally close |
| Media: | steam;water;liquid;air, etc. |
| Max valve pressure: | 10bar |
| Body material: | Brass |
| Seal ring material: | NBR, EPDM, Silicon Gel, VITON |
| Max media temperature: | 90/160 o C |
| Voltage available: | DC 12V; DC 24V; 12V/50; 24V/50; 110V/50; 220V/230V/50 |
| Protection class: | IP 65 |
We have many years professional manufacture experience in designing and producing solenoid valves, other fluid control products and their components. Now we have several patents. Our product passed CE of TUV, SGS.
Our main product are solenoid valves for water, solenoid valves for steam, solenoid valve for air, stainless steel float ball switch and other brass products. Widely be used in automatic application of welding, irrigation, ironing, food process, inductive sanitary, water auto supply, home appliance industry.
Quality control is one of our main principles. Our design, producing and testing are strictly complied with ISO9001 standard. Now our products are exported all over the world.
Welcome to choose our varied products. We have powerful technical support, steady quality and good service. We'd very like to have cooperation with you in a long term relationship.
