RFWG(T)Steel Ball Single Direction Valve
PLWG(T) Single Direction Steel Ball type Ball Valve is ball style designed. The metals are sealed can be used in the discharge pipe of compressor to prevent the refrigerant gas returning to the compressor from condenser when it stops working.
Features
High passing capacity with the directly flow designed
Nearly no leak on reverse direction
All the metal permits high temperature when in installation and working
Incorporate structure can remove the leak
Can choose the inside spring fixed

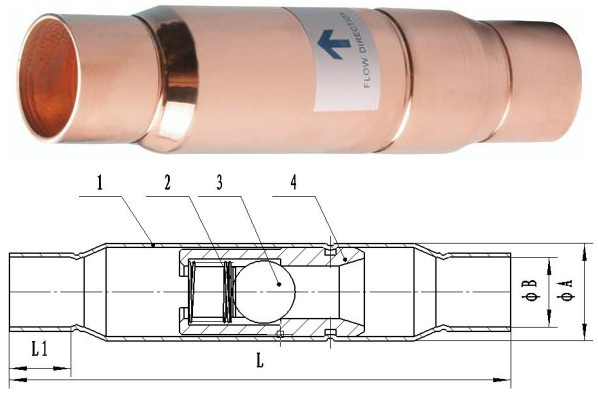

Designing Function
1, Copper tube (TP2Y2)
2, Spring(65Mn)
3, Steel ball(GCr15)
4, Valve seat(HPb59-1)
Specification
Mod
|
Model |
M.W.P.(MPa) |
On pressure(MPa) |
Passing capacity(ml/min) |
Capacity when Pressure drop 0.015Mpa(KW) |
Overall dimension(in) |
|
R-12 |
R-22 |
R-502 |
L |
L1 |
A |
B |
|
RFWG-06 |
4.5 |
0.02 |
≥750 |
13.3 |
17.5 |
11.55 |
3.8 |
0.3 |
1/2 |
3/8 |
|
RFWG-08 |
23.8 |
31.5 |
21.0 |
3.7 |
0.3 |
5/8 |
1/2 |
|
RFWG-10 |
3.5 |
0.05 |
44.8 |
59.5 |
39.55 |
4.5 |
0.4 |
7/8 |
5/8 |
|
RFWG-14 |
92.05 |
122.5 |
82.25 |
4.5 |
0.4 |
1-1/8 |
7/8 |
|
RFWG-18 |
2.8 |
0.065 |
241.85 |
322.0 |
216.3 |
5.0 |
0.6 |
1-3/8 |
1-1/8 |
