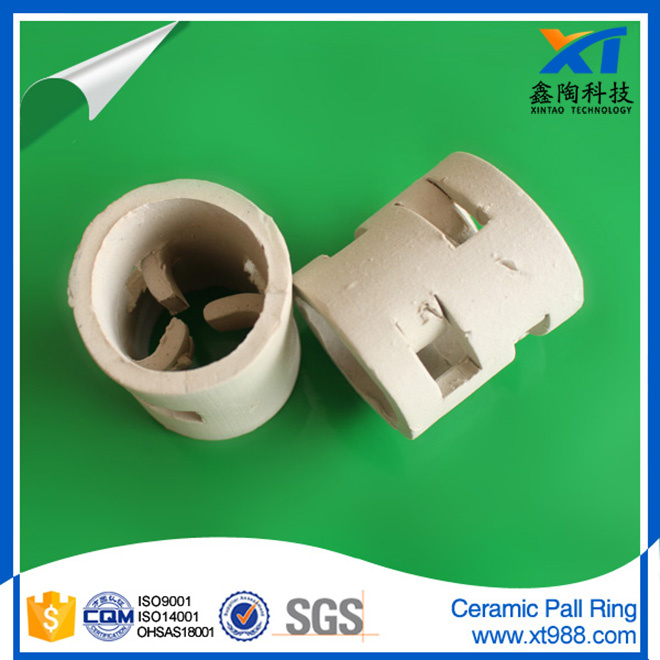

Ceramic pall ring is a open-hole ring packing, which high and diameter is the same and with 5 ligules toward inside at every floor. Usually the open surface is 30% of the whole wall surface, this character helps the liguid & gas pass in packing tower pass freely from the windows of the rings.
Technical Parameter
Model: | Pall Ring |
Shape: | Ring |
Color: | Light Grey |
|
Chemical composition |
SiO2 | Al2O3 | Fe2O3 | CaO | K2O+Na2O |
|
>70% | 23-30% | <1% | <1-2% | <2-4% |
|
Technical data |
Diameter (mm) | D*H*T(mm) | Surface area (m2/m3) | Free volume (%) | Number per m3 | Bulk density (Kg/m3) | Dry Packing Factor (m-1) |
38 | 38*38*4 | 150 | 75 | 13400 | 570 | 356 |
50 | 50*50*5 | 120 | 78 | 6800 | 550 | 252 |
80 | 80*80*8 | 75 | 80 | 1950 | 520 | 146 |
|
Physical properties |
Index | Value |
Specific gravity(g/cm3) | 2.25-2.35 |
Water absorption (%) | <0.5 |
Acid-resisting strength, %Wt. Loss (ASTMc279) | <4 |
Firing temperature(Degree C) | 1280-1320 |
Softening point( Degree C) | >1400 |
Density(kg/m3) | 2350 |
|
Typical Application | a) Have excellent acid resistance and heat resistance. b)It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid. c)Used in high or low temperature conditions. d)Used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc. |
Package : | Jumo bag; Carton box; Wooden Case |
MOQ: | 1 Cubic Meter |
Payment Terms: | T/T; L/C; Paypal; West Union |
Warranty: | a) By National Standard HG-T 4369-2012 |
b) Offer lifetime consultation on problems occurred |
|
| a 20GP | a 40GP | Sample |
Quantity | 20M3 | 40M3 | 3 Pieces |
Delivery Time | 3 days | 5 days | Stock available |
