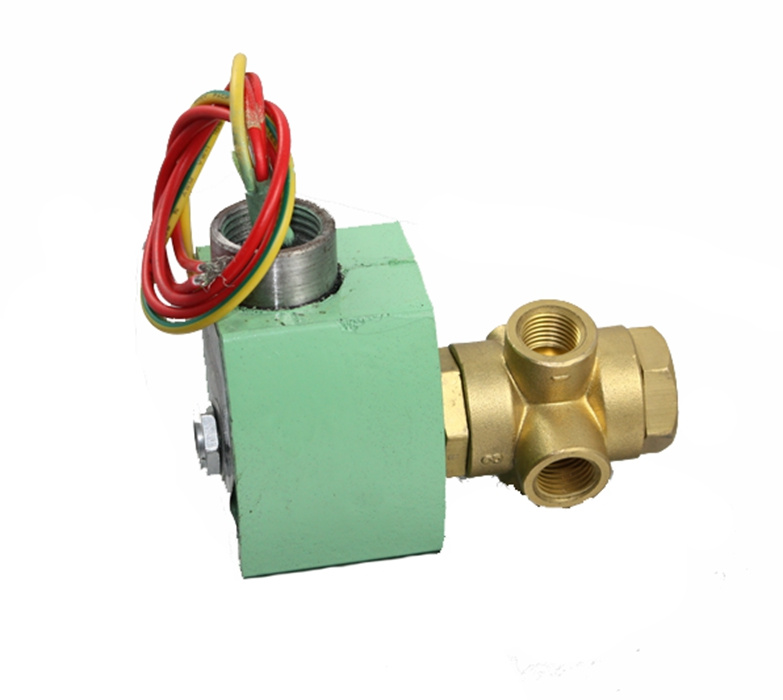

Sullair 110v 24v Solenoid Valve air compressor part
Solenoid valve is composed of electromagnetic coil and core, consists of one or a few holes of the body. When the coil electricity or without electricity, the operation of magnetic core will lead to flow through the valve body or is cut off, in order reach change the direction of flow.Solenoid valve of electromagnetic components made by the fixed core, moving iron core, coil and other parts,Body parts by a valve core, valve cover, spring base, etc.The electromagnetic coil is directly installed on the valve body, the body is enclosed in a sealed tube, constitute a combination of a simple, compact effect.
Specification:
1. Sullair solenoid valve for compressor parts
2. P/N :250038-666
3. Suit model : LS15-50/60/75HP
4. Original & replacement available
Feature
2/2 way direct acting, normally closed, diaphragm industrial valve, 2 inch water solenoid valve, 2W500-50-DC24V
Material: Brass or SS
Can be used to control air, water, gas, oil.
Adopting straight-action diaphragm structure without pressure starting enlarges its applicable scopes.
Adopting plate diaphragm structure with reliable start and close lengthens the service life of the product.
Selecting encapsuled coil improves the safe application of this product under many environments.
Specification
Model 2W160-10 2W160-15 2W200-20 2W250-25 2W350-35 2W400-40 2W500-50
Working Medium Air, Water, Oil, Gas
Motion Pattern Direct Drive Type
Type Normal Close Type
Aperture of Flow Rate mm 16 20 25 35 40 50
CV Value 4.8 7.6 12 24 29 48
Joint Pipe Bore 3/8" 1/2" 3/4" 1"11/4" 11/2" 2"
Operation Fluid Viscosity 20CSTBelow
Working pressure Air: 0~1.0Mpa\ Water: 0~0.7Mpa\ Oil: 0~0.7Mpa
Max. Pressure Resistance 1.0Mpa
Operating Temperature -5~80 degree
Voltage Range: 10%
Material of Body Brass
Material of Oil Seal NBR or VITON
Model | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
| Working Medium | Air, Water, Oil, Gas |
| Motion Pattern | Direct Drive Type |
| Type | Normal Close Type |
| Aperture of Flow Rate mm | 16 | 20 | 25 | 35 | 40 | 50 |
| CV Value | 4.8 | 7.6 | 12 | 24 | 29 | 48 |
| Joint Pipe Bore | 3/8″ | 1/2″ | 3/4″ | 1″ | 1 1 /4″ | 1 1 /2″ | 2″ |
| Operation Fluid Viscosity | 20CSTBelow |
| Working -pressure | Air: 0~1.0Mpa. Water: 0~0.1Mpa. Oil: 0~0.1Mpa |
| Max. Pressure Resistance | 1.0Mpa |
| Operating Temperature | -5~80 degree |
| Voltage Range | ±10% |
| Material of Body | Brass |
| Material of Oil Seal | NBR or VITON |
Business scope |
Mechanical Seal :
| Temperature Sensor | Pressure Sensor
|
| Maintenance Kits | Solenoid Valve | Thermostatic Valve
|
| Air intake | Wheel Gear
| Pressure Maintaining Valve |
| Air Filter | Oil Separator | Oil Filter
|
| Oil Level Indicator | Circuit Board Master Control | Air intake valve |
| Used air compressor | Air-end | Oil level indicator |
FAQ:
1. What's Minimum Order Quantity of your air compressor part?
the MOQ is 1pc, need you pay for the delivery cost.
2. What's kind of your packaging for the air compressor part?
neutral packing or brand pack as your requirement
3. Could I get some samples? How could i pay the sample payment?
yes, we can provide sample, but not free.
payment: paypal, westunion ,TT
4. How long is your Delivery Lead Time ?
If there is stock, the lead time is about 2 WORKING DAYS after we get the payment, if need to be produced, it depens.
5. Could you Calculate the shipping cost for me?
Yes, we are honored to do that for you! Before the freight , please well let us know which seaport or airport near your place.
6. what's the delivery way?
shipping way: air freight, express, sea
Our services
24 hours a day, 7 days a week
1-stop purchasing
Cheap, fast and efficient
adequate stocks
provide install instruction and guide
Hongkong Jiubei Industry Limited was established in 2000, located in Dongguan city Changan town - "China National Machinery and Hardware Mold town".
We are a Hi-Tech company specialized in research, development, manufacture and distribution of Air compressor spare parts. We provide used air compressor, used air compressor airend, air compressor valves, air compressor controllers, air compressor service kits, air compressor filters, air compressor coolers and so son, With our rich experience, professional technology and rigorous quality control, our products has been widely used in various brand air compressors, such as Atlas Copco, Hitachi, Sullair, Kobelco, Fusheng with good feedback and continuous orders from more than 2, 000 customers in domestic and oversea market.
Sticking on the principle of "Super quality, satisfactory service", we are striving hard to build the most complete variety platform of air compressors spares parts in China.
