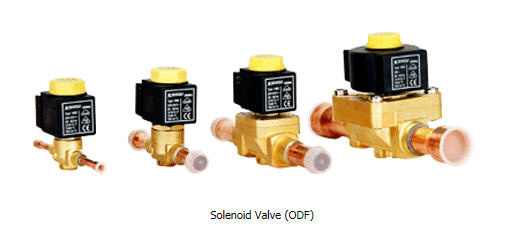

SV series Solenoid Valve For refrigeration equipment
Descriptions:
1-SV series Solenoid Valve is a kind of normally closed, two-channel trait, acted as a pilot valve, it usually is applied in the liquid refrigerant or exhausting air and water or compressing air, with the features as below:
2-Nut system with O ring ensures watertight performance and strengthens the watertight performance of the coil.
3-The elaborately designed coil winding conforms to CE161-lstandard and able to remain functioning under extreme conditions.
4-The coil winding can be fitted with plug-in connector, which is configured with three wires and can be connected very easily.
5-Electromagnetic coil employ moisture-proof resin windings, which possesses water-proof and shock resistant characteristics.
6-There is no need to shut systematic pipe line when replacing the electromagnetic coils.
7-The valve can evaporate normally, be opening or closing, under the condition that there is no pressure differential of the refrigerant media.
8-Working Temp.:-40C ~ +110C
9-24V, 110V, 220V and 380v electromagnetic coil are available and please inform us of that when placing order
Type | Connection size | Port φ(mm) | M.O.P.D(bar) | Max.Working Pressure (bar) | KV Factor(bar) | Nominal Capacity (KW) |
Solder | R134a | R22 | R407C | R404A |
Φ[in.] | Φ[mm] |
SV1028/2 | 1/4" | - | 2.2 | 21 | 32 | 0.15 | 2.53 | 2.70 | 2.81 | 1.79 |
SV1028/2E | 1/4" | - | 3.0 | 0.23 | 3.88 | 4.14 | 4.31 | 2.74 |
SV1028/3 | 3/8" | - |
SV1028/M10 |
| 10 |
SV1068/3 | 3/8" |
| 7.0 | 0.8 | 6.8 | 9.4 | 9.3 | 8.0 |
SV1068/M10 | - |
|
SV1068/M12 | - | 12 |
SV1068/4 | 1/2" | - |
SV1078/M12 | - | 12 | 12.5 | 2.2 | 18.7 | 25.7 | 25.6 | 22.0 |
SV1078/4 | 1/2" | - |
SV1078/5 | 5/8" | 16 | 2.61 | 22.2 | 30.5 | 30.3 | 26.1 |
SV1078/6 | 3/4 | - |
SV1079/7 | 7/8" | 22 |
SV1058/5 | 5/8" | 16 | 16.5 | 3.8 | 32.3 | 44.5 | 44.2 | 38.0 |
SV1058/6 | 3/4" | - | 4.8 | 40.8 | 56.2 | 55.8 | 48.0 |
SV1058/7 | 7/8" | 22 | 5.7 | 48.5 | 66.7 | 66.2 | 57.0 |
SV1059/9 | 1.1/8" | - |
SV1098/5 | 5/8" | 16 | 3.8 | 32.3 | 44.5 | 44.2 | 38.0 |
SV1098/6 | 3/4" | - | 4.8 | 40.8 | 56.2 | 55.8 | 48.0 |
SV1098/7 | 7/8" | 22 | 5.7 | 48.5 | 66.7 | 66.2 | 57.0 |
SV1099/9 | 1.1/8" | - |
SV1078/9 | 1.1/8" | - | 25.5 | 10 | 85.0 | 117.0 | 116.2 | 100.0 |
SV1079/11 | 1.3/8" | 35 |
SV1098/9 | 1.1/8" | - | 25.0 | 10 | 85.0 | 117.0 | 116.2 | 100.0 |
SV1099/11 | 1.3/8" | 35 |
SV1078/11 | 1.3/8" | 35 | 27.0 | 16 | 136.0 | 187.2 | 185.9 | 160.0 |
SV1079/13 | 1.5/8" | - |
SV1079/M42 | - | 42 |
