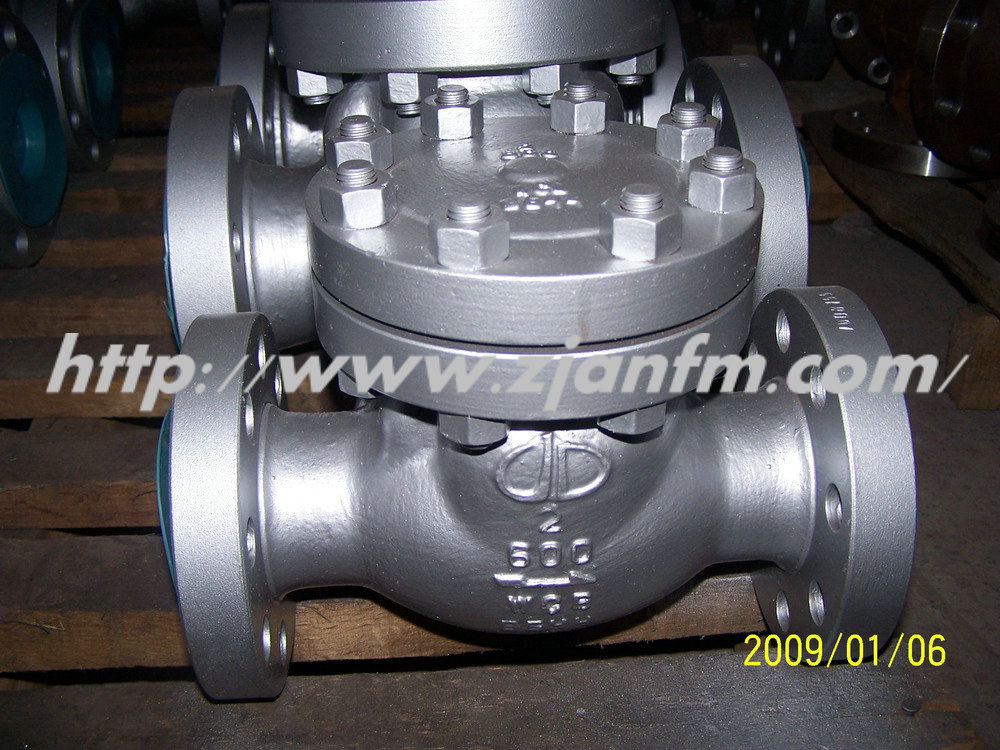

Swing Check Valve
Price: |
Negotiable |
Min Order: |
1 |
Brief Description:
1. Check valves are two port valves, meaning they have two opening in the bogy. One for fluid to enter the other for fluid to leave.
2. There are various types of check valves used in a wide variety of applications. Check valves are often part of common household items.
3. The disc, the movable part to block the flow, swings on a hinge or trunnion, either onto the seat to block reverse flow or off the seat to allow forward flow.
4. The seat opening cross-section may be perpendicular to the centerline between the two ports or at an angle.
Standard |
a) Manufacture: |
ANSI B 16.10/API 609/ISO 5752/BS5155 |
b) Face to face dimensions: |
ANSI B16.10, GB12221 |
c) Pipe flange: |
JB/T74 90, GB12380, HG20615~20635, SH3006, ANSI B16.5 |
d) Testing and inspection: |
GB/T13927, API598 |
item |
DN40-DN1200 |
Pressure |
ANSI 125#/150#; JIS5K/10K/16K; DIN 2501 PN6/PN10/PN16/; BS4504 PN10/PN16 |
Port Size |
DN40-DN1200 |
Power |
Hand Lever / Worm Gear/ Pneumatic / Electric |
Media |
Freshwater, Sea water, Air, steam, food, medicine and kinds of oil, acid, alkali, salt. |
Materials: |
|
PART NAME |
ASTM MATERIAL |
1 |
BODY |
A216 WCB |
A217 WC6 |
A217 WC9 |
A351 CF8 |
A351 CF3 |
A351 CF8M |
A351 CF3M |
2 |
SEAT |
A105 |
A182 F11 |
A182 F22 |
A182 F304 |
A182 F304L |
A182 F316 |
A182 F316L |
3 |
DISC |
A105 |
A182 F11 |
A182 F22 |
A182 F304 |
A182 F304L |
A182 F316 |
A182 F316L |
4 |
GASKET |
A570 S |
A276 304 |
A276 304 |
A276 304 |
A276 304L |
A276 316 |
A276 316L |
5 |
NUT |
A194 2H |
A194 8 |
A194 8 |
A194 8 |
A194 8 |
A194 8L |
A194 8L |
6 |
ARM |
A216 WCB |
A217 WC6 |
A217 WC9 |
A351 CF8 |
A351 CF3 |
A351 CF8M |
A351 CF3M |
7 |
PIN |
ANSI 1035 |
A276 410 |
A276 410 |
A276 304 |
A276 304L |
A276 316 |
A276 316L |
8 |
SUPPORT |
A216 WCB |
A217 WC6 |
A217 WC9 |
A351 CF8 |
A351 CF3 |
A351 CF8M |
A351 CF3M |
9 |
PIN |
A307 B |
A193 BB |
A193 BB |
A193 BB |
A193 BB |
A193 BBM |
A193 BBM |
10 |
BOLT |
A193 B7 |
A193 B8 |
A193 B8 |
A193 B8 |
A193 B8 |
A193 B8M |
A193 B8M |
11 |
NUT |
A194 2H |
A194 4 |
A194 4 |
A194 8 |
A194 8 |
A194 8M |
A194 8M |
12 |
GASKET |
Graphite+304SS |
Graphite+304SS |
Graphite+304SS |
Graphite+304SS |
Graphite+304SS |
Graphite+316SS |
Graphite+316SS |
13 |
BONNET |
A216 WCB |
A217 WC6 |
A217 WC9 |
A351 CF8 |
A351 CF3 |
A351 CF8M |
A351 CF3M |
14 |
EYE BOLT |
ANSI 1035 |
ANSI 1035 |
ANSI 1035 |
ANSI 1035 |
ANSI 1035 |
ANSI 1035 |
ANSI 1035 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Function: |
Ddcv Double Lobe |
Structure: |
Swing |
Material: |
Cast Steel/ Stainless Steel/ Cast Iron |
Connection Form: |
Flange and Welding |
Zhejiang Anneng Valve Co., Ltd. is a company with develop, exploitation, production and marketing of high-temperature high-voltage station valve. The company has advanced management mechanism and sophisticated equipment for machinery processing and examining, testing, advanced product structure, technical skills. Produce according to the Ministry of superscript, GB, the Industry Standard, and the United States, Japan, Germany, France and other countries standards.
Zhejiang Anneng Valve Co., Ltd. has always been able to reply on science and technology, continuous innovation and strict management system so that the company has set up a complete management system, Product sales, contracts, warehouse, financial, personnel efficiency of the whole company are closely united, guarantee the quality of the products strictly. The company's long-term goal is the company enters the information network, in-depth development of high temperature and high pressure valves and other valve products. The main products are valve, closing valves, Power Station Valve, ball valve, check valve, butterfly valve, the U. S. Standard valves, and other hundreds of different specifications. The main materials used WCB(A 105), WC9(F11), WC9(F22), LCB(ZGCr5Mo), ZG1Cr18Ni9Ti, ZGOCr18Ni12Mo2Ti, CF8(304), CF3(304L), CF8M(316), CF3M(316L), CF7MC20full metal, MONEL, Titanium and so on, Driver forms are: Manual, electrical, pneumatic, (spur, bevel) gear, over-type worm gear and so on. Nominal diameter: DN10mm-1200mmNPS 1/8"-40" Nominal pressure: PN0.6MPa-42MPa API 150LB-2500LB: JIS 10K-63K: Operating temperature: -196° C-600° C; Applicable medium: Water, steam, oil, nitric acid, acetic acid type, the medium-oxidation, urea, oxygen, coal gas, liquid ammonia, ethylene oxide, methanol, Acrylic, propane and so on.
Zhejiang Anneng Valve uses the quality of management, production technology and services to ensure quality assurance, return the majority of uses love of the valves with sound reputation, uses business philosophy "Quality First, the user first" continue applies of new technologies, new processes, and actively develop quality products. Welcomed the new and old customers work together for a better tomorrow!
