Swing Check Valve

Swing Check Valve
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
Contact Supplier
Qingdao DVC Machinery Co., Ltd
Showroom Product Company Profile
DESCRIPTION
1Face to Face: DIN3202F6, BS5153
2Flanged ends: DIN2501, BS4504,
3Normal pressure: : 1.0MPa, 1.6MPa, 2.5Mpa
4Suitable medium: Water
5Working temperature: NBR<80 D., EPDM<120 D.

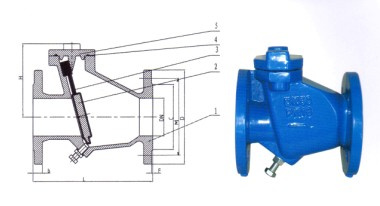

No. Part Material
1 BODY GGG40/GGG50
2 DISC
 		 GGG40/GGG50
3 OBTURATING EPDMNBR
4 SHAFT EPDMNBR
5 PACKING GGG40/GGG50
DIMENSIONS(mm)
DN L1 b D C M H F n-d
DIN3202 BS5153 DIN3202 BS5153
50 200      203 19 19 165 102 125
 		 118 3 4-19
65 240 216 19 19 185 122 145 135 3 4-19
80 260 241 19 19 200 138 160 160 3 8-19
100 300 292 19 19 220 158 180 182 3 8-19
125 350 330 19 19 250 188 210 205 3 8-19
150 400 356 22 19 285 212 240 235 3 8-23
200 500 495 22 20 340 268 295 275 3 12-23
250 600 622 26 22 405 320 355 320 3 12-28
300 700 698 26 25 460 378 410 365 4 12-28
350 800 787 27 27 520 438 470 400 4 16-28
400 900 864 28 28 580 490 525 430 4 16-31
Prod Model: DN50~DN400
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Form: Flange
Material: Cast Iron
Structure: Swing
Application: Water Industrial Usage
Qingdao DVC Machinery Co., Ltd, Qingdao Shuangkun Trade Co., Ltd. Located in the beautiful city of Qingdao, that is in producing and saling casting iron products and Machines & Equipment as a group of companies, mainly products:

DIN standards valves, BS standards valves, ANSI standards valve a fittings

Hydraulic machinery, casting machinery and other industrial products, the products have passed GB/T19001-2008 idt IS09001: 2008 quality system certification, over the years, the company has been adhering to strict attitude, the idea of ​ ​ Creating superior products, perfect for the consistent production requirements, integrity, strength and quality of products recognized by the industry, and was awarded the title of Shandong famous corporate integrity.

Main Products:

Valves: Soft seal gate valve, soft seal butterfly valve, ball valve, check valve, globe valve and valve accessories and other kinds of steel and cast iron fittings.

Pipe Fittings: Duck legs, Double flanged pipe, all- flanged tees, double socket bend 45/90/11.25/22.5 degrees, 'Y'&'T'shape Pipe, Tapered Pipe & Fittings.
