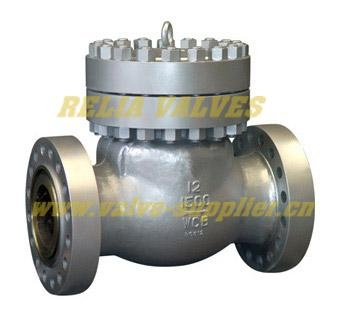

Swing Check Valve

Swing Check Valve
Price: US $ 88/Piece
Trade Terms: others
Min Order: 1/Piece
Pay Type: T/T
The products of swing check valve consist of cast steel swing check valves and forged steel swing check valves, as well as API 6D check valve. We are capable of quick delivery for Swing check valves, cast steel swing check valves & API 6D check valve; There are some cast steel swing check valves in stock.

Features

Swing Type Disc

Welded Seat/Threaded Seat

Conventional port or full port

Bolted Cover/Pressure Seal Check Valve

6" & Larger With Eye Bolt

By Pass On Request

Lever & Weight Optional



Standards

Design - BS1868/API 6D/ASME B16.34

Face to Face - ASME B16.10

End to End - ASME B16.10

BW End - ASME B16.25

Test - API 598

Special - NACE MR-01-75



Range

Body Material

- WCB, WC6, LCB, CF8, CF8M, CF3, CF3M, CF8C

Trim Material - API 600 Trim number 1 to 17

End Connection - Flange/BW

Pressrue Rating - Class 150, 300, 600, 900, 1500

Size - 2"-56"
Prod Model: H44H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Swing Type Disc: Welded Seat/Threaded Seat
Conventional Port Or Full Port: Bolted Cover/Pressure Seal Check Valve
6" & Larger With Eye Bolt: by Pass on Request
Application: Water Industrial Usage
Relia is a professional industrial valve manufacturer based on Wenzhou, China. Manufacturing high quality China check valves, globe valves, gate valves and ball valves etc. The company was found in 1990's, continuing to leverage advanced engineering capabilities and innovation to create high quality valves that satisfy the customers' needs.

The company is capable for NDT test including RT, PT, PMI and MPI; All our products are tested in accordance with the relative standards prior to leaving the factory, and certified according to EN 10204 standards.

We have kinds of customers like stockiest, agents, EPCs, distributors, and end users. The stockiest can benefit by obtaining standard valves at the lowest possible price, while other customers can get customized valves, and technical support, we can also supply technician on site service.

Our featured products are cast steel gate valves, cast steel globe valves, cast steel swing check valves, cast steel trunnion mounted ball valves, forged steel trunnion mounted ball valves, forged steel gate valves and wafer check valves.

With the capability and rich experience in international business, we believe that Relia will be one of your reliable partners.
