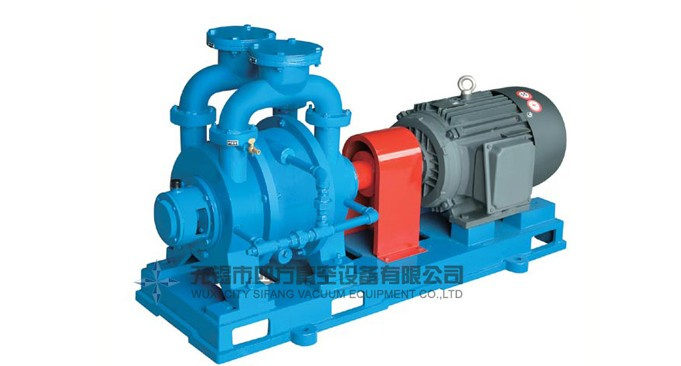

Sz Series Water Ring Vacuum Pump (GLC)
| Price: |
Negotiable/Piece |
| Min Order: |
1 /Piece |
Sz Series Water Ring Vacuum Pump (GLC)
Range of use:SZ water ring vacuum pumps are widely applied to the chemical industry, machinery, lighe industry, medicine, food, textile and other industries for pumping air or other gases which are not soluble in water, free of solid particles and ono-corrosive so as to form a certain vacuum concentration, vacuum drying, vacuum filtration, vacuum feeding, etc.
Model
Function |
SZ-20 |
SZ-40 |
SZ-63 |
SZ-100 |
SZ-160 |
SZ-250 |
SZ-360 |
SZG-8 |
(m3/h)
Pumping Speed |
20 |
40 |
63 |
100 |
160 |
250 |
360 |
38.2 |
≤(Pa)
Ultimate Pressure |
4 ×10 3 |
4 ×10 3 |
4 ×10 3 |
4 ×10 3 |
4 ×10 3 |
6.7 ×10 3 |
6.7 ×10 3 |
1.47 ×10 4 |
(Kw)
Motor Power |
1.5 |
2.2 |
3 |
4 |
7.5 |
11 |
15 |
3 |
(rpm)
Rotational Speed |
1.5 |
2.2 |
3 |
4 |
7.5 |
11 |
15 |
3 |
(m3/h)
Flow of Suplying Water |
2840 |
2840 |
2880 |
2890 |
2900 |
1460 |
1460 |
1450 |
Inlet (Outlet)Diameter |
G1 ″ |
G1 ″ |
G1 1/ 2 ″ |
G1 1/ 2 ″ |
G1 1/ 2 ″ |
Φ100 |
Φ100 |
1 ″conics pipe |
(Kg)
Weight |
42 |
48 |
73 |
85 |
118 |
378 |
430 |
64 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
GREEN LEAF CHEMICAL Ltd is a group company who focused on the chemical industry field, the headquarters are in London, UK, which have Singapore Huabang International Pte Ltd; Hong Kong Green Leaf Co., Ltd.; Wuxi green leaf new materials technology Co., Ltd; Liyang Huabang High Molecular Materials Co., Ltd.; Wuxi Sifang Vacuum Equipment Co., Ltd.
Our Group have developed Chloroacetic Acid, Epichlorohydrin (ECH), Epoxy resin, Alkyd resin, Acrylic resin products from China, now we are leader in covering 12 series and including more than 170 varieties, with a capacity of 10, 000MTons Chloroacetic Acid, 10, 000MTons Epichlorohydrin (ECH), 100, 000 MTons epoxy resin per year, we can offer a full lineup of epoxy resins and the quality are same to DOW or HEXION, which are widely applied in the fields of fiber glass, electronics, electricity, coating, buildings, aerospace, responding to the varying requirements of the customers, we also have all types of the alkyd resin, acrylic resin, and some curing agents. Further more, we have paint and coating manufacturer lines, we can offer Lacquer paint, alkyd paint, acrylic paint, epoxy coatings, polyurethane paint, which are wide used in industry anti-corrosion, Now we are offering the wind power tower coating, the quality is same to Hempel, PPG.
We are one of the biggest vacuum obtain equipment manufacturer enterprises in China. At present has formed turns on lathe the pieces(2X, XD), the pendular water ring series(SZ, 2SK, SK, 2BE), the reciprocation series(WLW), the Luo tribulus series(ZJ)nine big specification vacuum pumps as well as the Luo tribulus-pendular water ring unit(JZJS), the Luo tribulus-rotary cutter group(JZJX), Luo products and so on tribulus-reciprocating pump unit(JZJW). Widely applies in professions and the department and so on metallurgy, chemical industry, medicine, light industry, food, aviation, elecron, scientific research. We also formed series of 40 types of vacuum heat treatment furnace, vacuum aluminum brazing furnace, high temperature braze welding furnace, vacuum sintering furnace and monocrystalline silicon furnace. These products are widely usde in some industries and departments such as aviation, spaceflight, military industry, railroad, automobile, mechanism, mould, electron and scientific research.
