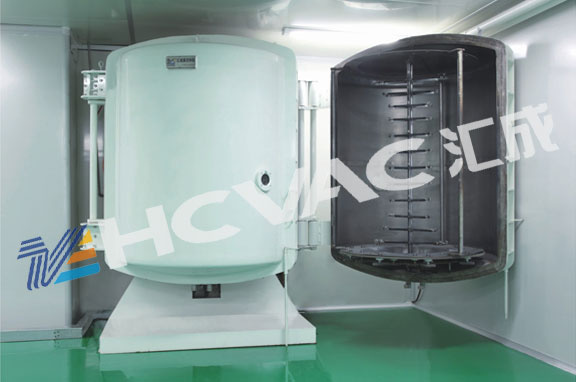

Tableware Vacuum metallizing Machine is operated by the principle of thermal evaporation by resistance heating that can be used for coating metallic films and gold-imitative films on the pre-treated plastics, ceramics and others in order to obtain bright and good-looking results with lower cost.
Applied Industry: This machine is extensively used in the fields of Tableware. Arts & Crafts industries, etc.
The machine equipped with high-vacuum diffusion pumps, roots pump, sliding valve pumps or rotary pumps composed of vacuum group, is the customers superior choice for vacuum metallizers of decoration purposes.
Mode
Dimension |
ZZ-1200 |
ZZ-1600 |
ZZ-1800 |
|
1200*1400mm |
1600*1800mm |
1800*2000mm |
|
Film Type |
Semitransparent film, non-conducting film, gold, silver, red, blue, green, purple, rainbow color, etc. |
|
Power source Type |
Thermal evaporation power, ion bombard power, RF power |
|
Vacuum chamber structure |
Vertical double/single door, horizontal single door, pump system postposition |
|
Ultimate vacuum |
8.0*10-4Pa |
|
Vacuum system |
Diffusion pump +Roots pump +Mechanical pump +Holding pump |
|
Pump time |
Pump from atmosphere to 5.0*10-2,≤6 minutes |
|
Work piece motion mode |
Public rotation/Frequency control |
|
Control mode |
Manual/Automatic all-in-one mode, Touching screen+PLC |
|
Remark |
We can design the dimension of the vacuum chamber according to customer's demand. |
DongGuan HuiCheng Vacuum Technology Co., Ltd is a high-tech enterprise specialized in the R&D, Production and Marketing of various kinds of the vacuum equipments. Our company aggregates many excellent technicians in the vacuum industry, including engineers with the senior and middle technique titles. We also invite the senior experts and experienced technicians to be responsible for the development and design of the new products, insure the high technology and quality of the vacuum equipment. Our products are popular with both the domestic and overseas clients, and have a high reputation in the vacuum industry.
Our company is dedicated to the R&D of the series of the vacuum coating machine. We have been designed various coating technics projects according to different requirements successfully, especially in the fields of mobile(computer) shell, electronical appliance, metal, auto parts and high-tech industries, etc. Particularly we designed the special wheels coating machine for the VIP enterprise in Zhejiang Province in 2007, bringing great benifits for the client, making prominent contribution to the environment protection and generating extremely positive social effectiveness. It is high appreciated by the government and craft brother. Therefor this project is listed to the item of the Nation Star Project. Our main products also include slide valve vacuum pump, Roots vacuum pump, water ring vacuum pump, rotary-vane vacuum pump, various vacuum units and different vacuum heating energy equipments, etc.
Our company sticks to the selling concepts of"People-Oriented, Keeping improving, Innovative and Factualistic, Customer First"; Holding the management policy of "Keep the science and technology ahead, Put quality and service at the first place"; Carrying forward our corporate spirits"Honesty and High efficiency, Unity and Struggle, Factualic and Innovative". We'll continue to hold the development and improvement as our main rhythm, stepping forward to the goal of becoming diversification, internationalization and high technological modern enterprise. We will make new contribution to set up the international advanced level in the vacuum fields.
