Standard:
Design standard conform to: MSS SP-67, API609, EN593
Connection flange conform to: DIN PN10/16/25, ANSI B16.1, BS4504, ISO PN10/16,
JIS B2212/2213, BS 10 Table D, BS 10 Table E
Top flange conform to: ISO 5211
Face to face conform to: API609, ISO5752 series 20, BS5155
Test standard conform to: API598
Design characters:

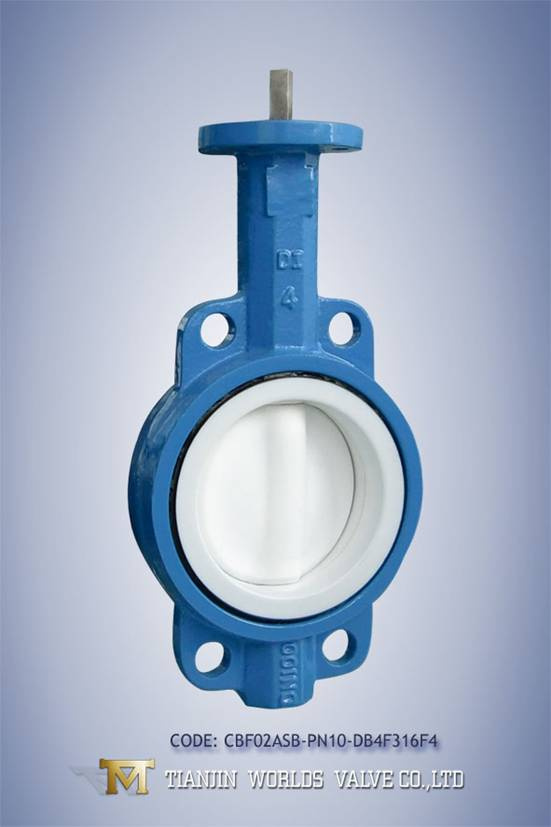

This corrosion resistant butterfly valve is a separated style with the PTFE liner ring inside. It can be fit for various corrosive and dangerous medium. Between the liner ring and the valve is the back liner which is made of high-elasticity rubber. The liner ring disc adopts the double spherical surface sealing structure which is used to guarantee the reliable closing and sealing performance. with the ascendant design, it will be safety and no leakage during the long-term use.
Performance:
Nominal Diameter: DN40-DN1200
Nominal Pressure PN (MPa):
1.0, 1.6, 2.0, 2.5
Testing pressure (water) PS (MPa)
Body seat: 1.5 times rated pressure
Seat test: 1.1 times rated pressure
Here is the features:
1. Structure simple is compact, stable positioning, and the weight is light.
2. Designs reasonably, the assembling and dismantling and installation is easy, to be advantageous.
3. Minimized operating torque. Lever, gear, pneumatic and electric actuators can be chosen.
3. Rubber backed seat with stable valve torque. No leakage under the rated pressure.
4. Special design, high flow rate and low flow resistance.
Application:
1. These products are mainly used for pipeline flow, pressure and temperature control of various industrial automation productiong, for example: Electricity, petrifaction, metallurgy, environmental protection, energy management, fir-fighting systems.
2. Simultaneously they have good fluid control properties, and can operate simply.
3. They are not only widely used in general industries as petroleum, coal gas, chemical engineering, water treatment, but also used in the cooling water system of thermal power plant.
|
Detailed Description: |
|
Series |
teflon butterfly valves |
|
Size: |
DN40-DN1200/1.5” -48” |
|
End flange: |
ANSI B 16.1, ASTM B 16.47, EN 1092, AS 2129, ISO PN10/16, JIS B2212/2213, BS 10 Table D, BS 10 Table E |
|
Face to face: |
ANSI B 16.10 |
|
Top flange: |
ISO 5211 |
|
Normal pressure: |
DN40-DN600(1.5” -24” ) PN1.0/1.6MPa(150/200PSI) DN700-DN1200(28” -48” ) PN1.0MPa(150PSI) |
|
Body: |
Cast Iron/Ductile Iron/WCB/Carbon steel/AL-Bronze/CF8, SS304/CF8M, SS316 |
|
Disc: |
Ductile Iron/Ni-plated ductile iron/Nylon-plated ductile iron/AL-Bronze/Rubber lined Disc/1.2501/1.4529/CF8/CF8M/Hastelloy Alloy/Monel
|
|
Stem: |
SS416/SS304/SS316/SS431/17-4PH/Monel |
|
Seat: |
NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White EPDM/EPDM(NSF)/PTFE |
|
Suitable temperature: |
Normal Temperature -45 ~150 |
|
Medium: |
Flesh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc. |
TIANJIN WORLDS VALVE Ltd. is located at TIAN JIN BIN HAI, , it is only 3 kilometers away from Tianjin Xingang Port, TIANJIN WORLDS VALVE Ltd. focuses on producing, installing, sale and service. The main products ranges from Center Line Butterfly Valve, Flanged Butterfly Valve, Metal Butterfly Valve, Dual Plate Check Valve, Gate Valve, Waterpower Control Valve, Microresistance Slow Close Check Valve, Multi-function Pump Control Valve to their series products. Moreover, we can produce control valve and pressure reducing valve with different materials, pressures, specifications, actuation ways. Our products have more than 50 serials and 1200 species, the annual production output is more than 8.000 metric tons. WORLDS valves sells well all over China and have been exported to Europe, America and other countries and areas, they are widely used in water supply and drainage, electric power, petrol chemical industry, metallurgy and other trades. The products are creative with good quality, cheap price and excellent credit, so far we got a good feedback from our customers.
WORLDS has excellent technicians and engineers, at the same time it has a lot of large and middle machines including 178 sets of manufacturing equipments and 32 sets of performance testing equipments imported from overseas. Our products have original design, exquisite technique, perfect manufacture and complete testing ways. It has passed ISO 9001 international quality system certification of DNV. WORLDS will supply best products and service for all customers.
