Designed and checked Based on American "ANSI Z21.22" Standard.
I,Using Method
Temperature and Pressure Relief Valves is suitable for Installing at the Pressurized solar water heater, gas heater, electric water heater , water heater of fuel, heat pump water heater , sensitive function heater, etc. various kinds of heaters( such as the boiler) and hot water containers . The valve will be opened at the set temperature and pressure to protect the water tank.
II,Technical Parameter
·Set Pressure(Psi): 75,87,100,125,150psi (0.5,0.6,0.7,0.8,1.0MPa)
·Set Pressure Tolerance: +5%,-10% of the set pressure.
·Set Temperature: From 65ºC to99ºC. (As you're required)
·Set Temperature Tolerance: 99ºC-5ºC; other set Temperature is ±5ºC
PS: We can made different type of valves as you're required.
·Dimensions/Weights
| MODEL | Size
in | Inlet× Outlet
in | A
mm | B
mm | D
mm | T
mm | Weight
(g) | Temp. Steam
Rating BTU/hr |
| WYA-15 | 1/2 | 1/2×1/2 | 41 | 83 | 31 | 100 | (205) | 15,000 |

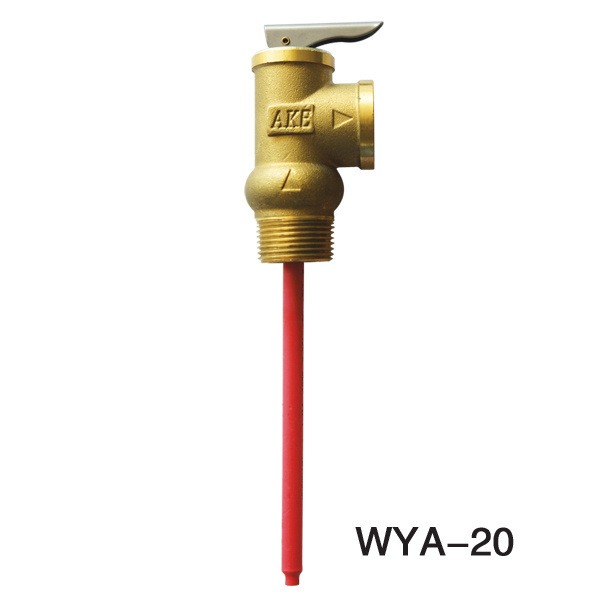

| WYA-20 | 3/4 | 3/4×3/4 | 42 | 83 | 31 | 100 | (222) | 105,000 |
III,How to Installation
·Temperature and Pressure Relief Valves should be installed on the top of the water heater top or side. The Temperature sensing element must be immersed in the water within the top 6″of the tank.
·The eliminating pipeline should be installed under the relief valve. Its terminal station distance in floor drain should be greater than 6″to make it easily remove and observe water
Direct Installed on the Top Direct Installed in the Side
IV,How to Safeguard And Maintenance:
·After installing water heater the users must lift the relief valve handle once at least every year, so as to ensure that unblocked things in the waterway of the relief valve.
·Before operating handles, please check the elimination pipeline which joining the relief valve, guaranteed that the hot water from the relief valve discharge the proper place, otherwise it may cause the bodily injury.
·If the handle is lifted, without water flowing out, it proves that the relief valve is invalid. Then it should turn off the water heater immediately and check the valve.
V,Warranty time:12 Months.
With nearly 10 years' manufacturing experience of safety valves, we were reputed as one of the most professional factories in China among who are exporting safety valves. Products all over the world, and enjoy high reputation especially in America, Middle East, Africa, Asia and other countries & regions.
Qingdao Anchor M&E Co., Ltd. is a large scale enterprise specialized in manufacturing and exporting series of safety valves, such as: Temperature and pressure relief valves, pressure relief valves, balancing valves, vacuum relief valves, not return and pressure relief valves, radiator thermostatic control valves, Automatic vent valve and other products.
Our company has 2 high-class production lines. We are professional in temperature and pressure relief valves, pressure relief valves, balancing valves, vacuum relief valves and other safety valves products. Our production capacity of man-made panels is more than 2 million pieces annually. All of our products have won great popularity from our customers.
Our products have already come up to the GB/T20910--2007 standards, passed test held by National Quality Technology Supervise Bureau. We got ISO9001 Quality Management System certifications.
Our management philosophy is "to get the survival through quality and to develop the reputation through innovation". Depending on high technology and efficient management, we will constantly develop new products to meet the needs of our customers.
We are sincerely looking forward to cooperating with all international partners to have a brighter future.
