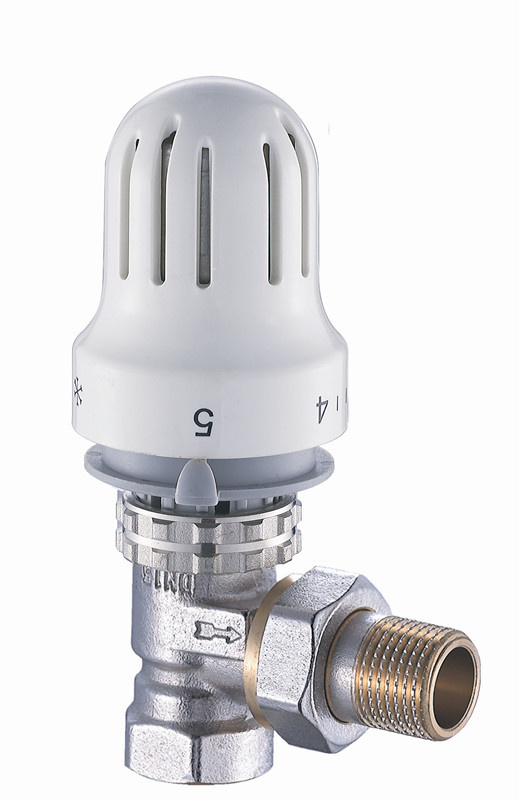

Thermostatic control valve:
I. Introduction
The thermostatic valve can automatically adjust room temperature to meet your need. It is designed to control the volume of heat in the room so as to reach a balance between the interior heat and needed heat.
II. Characteristics of products
European standard design
Humanization design outside, easy to be installed and simple to be operated
Sensitive adjusting and excellent linearity
Convenient to set and lock a degree of temperature (to lock a degree of a degree extent)
Comfortable handle
Technical infornation
Temperature sensor
Temperature hysteresis: 1.0k
Max admissible static pressure: 10bar
Max admission differential pressure: 1.0bar
Nomal pressure: 16bar
Max temperature resistance: 110degree
Temperature extent: 6-28degree
Temperature degrees as follow:
Room temperature(degree) 6 12 16 20 24 28
Scale interval * 1 2 3 4 5
Thermostatic valve body
Made of brass, easy to be installed
Low resistance
Water temperature: <120degree
Nomal resistance to pressure: 10bar
Remote control valve
1. ) 20-60 /30-70 degree
2. ) CE, ISO9001: 2008, ISO14001: 2004 EN215
3. ) Customer at Russia, Turkey, England.
Avonflow Baiyilun TRC Co., Ltd. Whose former name is "Wenzhou Baiyilun Hardware Co., Ltd"specializes in the development and manufacture of heating and temperature control products. Baiyilun constant temperature control valves, used in pressure temperature regulator of city heating and hot water system, are equipped with body as automatic constant temperature control valve. This valve does not need exterior energy while automotically controlled by indoor temperature, which can not only save energy but also protect environment and bring you a warm and comfortable indoor temperature. Manufacture and test of Baiyilun constant temperature control valve of radiator is according to GB/T13927-92; EN215-1 standard and have passed the test of Beijng Construction Project Quality Testing Center. Our compangy also have advanced and complete testing and inspecting instument.
