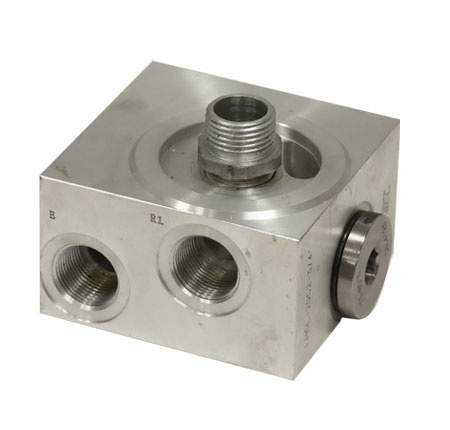

Temperature Control Valve, Temperature Valve, Control Valve
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Oil Fluid separate two way from the IN packet into the erosion temperature: One directly into the oil filter, another way out through the mouth from the TC return to FC port into the oil cooler filter to filtrate. Off the TC port valve when the oil temperature below 60 degrees, oil not pass cooler; Open TC valve and oil cooled by the TC when the oil temperature is greater than 60 degrees to promote the expansion valve bulb mouth right move; The TC directly reduce the flow of the oil to filter follow the temperature increased port traffic; TC temperature up to 75 degrees is the maximum mouth opening directly to the oil filter port and closed, all the oil cooling to achieve the temperature control purpose.
This valve is high sensitivity, rapid temperature control in a timely manner.
Model |
Oil flow |
Dimensions ( mm ) |
Rp |
A |
B |
C |
D |
G |
M |
4FWK20 |
70 |
|
60 |
95 |
105 |
50 |
2-M8 |
1''-12UNF |
4FWK25 |
140 |
1 |
63.5 |
140 |
120 |
60 |
2-M10 |
1''-12UNF |
4FWK32 |
180 |
1 |
63.5 |
180 |
120 |
70 |
2-M12 |
1 ''-16UNF |
4FWK40 |
400 |
1 |
83 |
208 |
130 |
90 |
2- φ12 |
2-1 ''-16UNF |
Prod Model: |
132kw |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Configuration: |
Stationary |
Power Source: |
AC Power |
Type: |
Screw |
Application: |
Intermediate Back Pressure Type |
