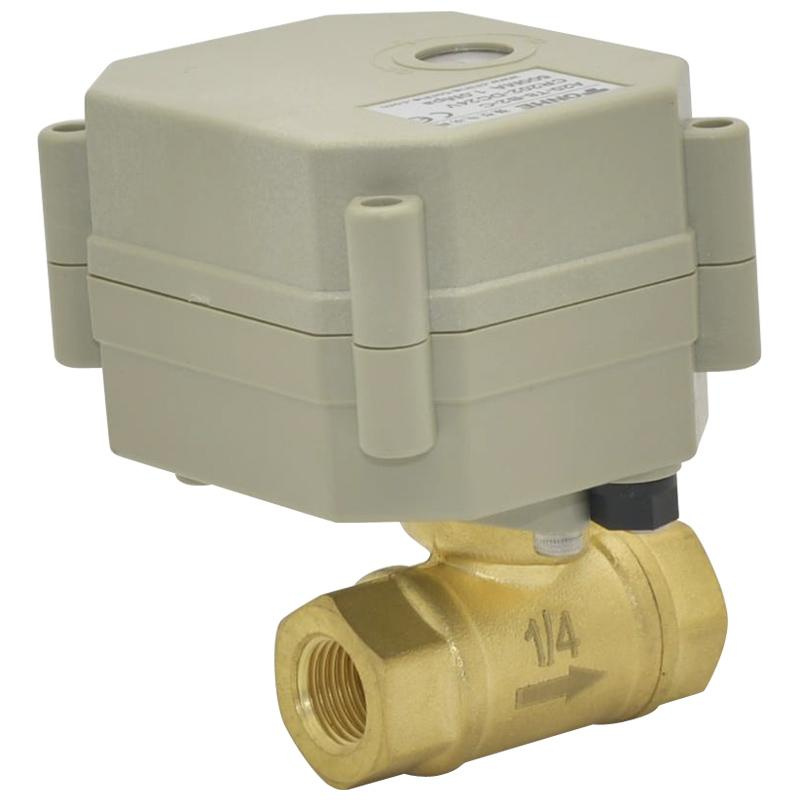

TF FLUID CONTROL SYSTEMS CO., LIMITED OFFER MINIATURE MOTORIZED BALL VALVE FOR WATER APPLICATION. QUALITY 365 DAYS GUARANTEED.
Valve Size: 1/4'', 1/2'', 3/4'', 1'' and 1 1/4'' (DN8-DN32);
Valve Type: 2 Way Ball Valve;
Valve Material: Brass/Stainless Steel 304
Valve Thread: BSP or NPT (Optional);
Voltage: 5VDC, 12VDC, 24VDC, 9-24VAC/DC, 110V-230VAC (Optional);
Torque: 2Nm
Open/Closed Times: 5sec
Control Wires: 2 wires, 3wires, 4 wires or 5 wires (with signal feedback);
Pressure: 1.0Mpa/ 135psi/ 10bar;
Sealing Material: EPDM & PTFE;
Working current: Less than 500mA;
Life time : 70000 times;
Environment temperature: -15centigrade - 50centigrade;
Liquid temperature: 2centigrade - 90centigrade;
Protection Class: IP67;
Manual override: Yes / No (Optional);
Indicator: Yes / No (Optional).
Design feature:
1 All-copper gear design, high accuracy output torque, especially for multi-channel scaling system.
2 Small size, compact structure.
3 A variety of control methods, either to accept remote valve position control signal, but also the feedback Signal in place for computer intelligence unit testing.
4 Good sealing performance
For occasions:
1 IC card water meter, heat meter.
2 Air-conditioning fan coil, fire sprinkler.
3 Solar energy drain valve, high efficiency water-saving.
4 Automatic control systems, university water system, smallscale industrial automation equipment, environ-mental protection.
TF Fluid Control Systems Co., Ltd specialized in motorized valves, electric fluid control valves, actuators, timer controlled motorized valve, solenoid valve, fan coil and under floor heating thermostats. Two ways electric valve from 1/4'' to 2''; Three way vales include T and L type from 1/2'' to 1''. The work voltage could be DC3-6V, DC5V, DC12V, AC/DC24V, and AC110-230V. Thermostats have AC24V and AC220V types and ISO9001 certification was approved.
Miniature motorized valve are widely used in HVAC, water saving, central air conditional fan coil, automatic water pump tanks, heat meters, fire sprinkler, water treatment, water efficiency, solar instrument, water heating, agriculture irrigation equipment, automatic drain systems, Brewing systems and other water automatic control systems.
The high quality and our professional service enjoy the trust in many old clients from America, Australia, Netherland, Thailand, Russia and United Kingdom.
"High quality is our mission". Choose me, equal to choose a credible partner.
