Valve Manufacturers and Factories

Home Valve Products Th537

Th537

Th537
Price: Negotiable/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union

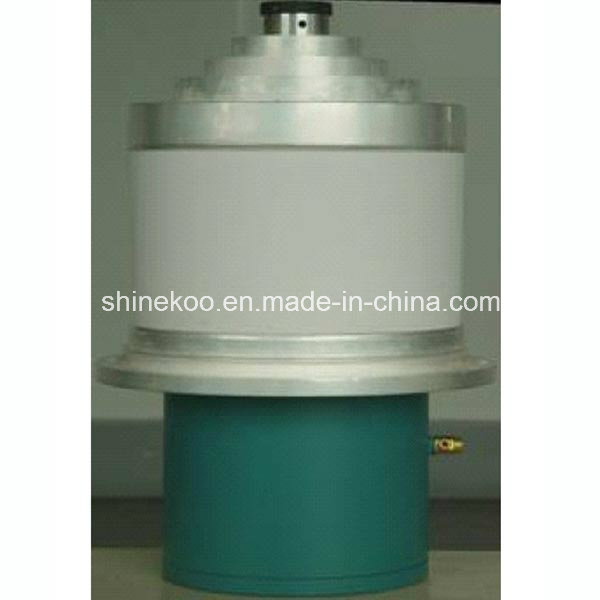

TH537 is a High Frequency Metal ceramic transmitting tube designed specifically for industrial applications. This tube uses a coaxial design and metal-ceramic technology. This tube may be operated in CW or pulse modes.
For operation in pulse mode, the parameters depend on each equipment characteristics.

We manufacture the following all models.
FC-10FA, FC-10FT, FC-732F, FC-735F, FC-735FT, FC305F, FC311, FC312F, FC620F, FC620FT,
FD911S, FD003Z, FD-5S,
FC10FT, FC201F, FC307F, FC307FS, FC308C, FC310C, FC310F, FC502F, FC732F, FC734F, FC735F,
FU-33, FU-833A, 833A, 833C, FU-74F/RY-74B, FU-100F, FU-728F, FU-113F, FU-113FG, FU-998F, FU-5S, FU-62S, FU-610F, FU-610FA, FU-610S, FU-724F, FU-724S, FU-727F, FU-824F, FU-824FA, FU-834F, FU-834FA, FU-924F, FU-924FA, FU, FU-101F/M, FU-101Z, FU-101C, FU-832C/FA, FU-832F/M, FU-917F/M, FU-307S, FU-74F, FU-250F, FU-252F, FU-946F, FU611F, FU612F, FU613F, FU001F, FU104C, FU104Z, FU115F, FU116F, FU252F, FU615F, FU616C, FU617F, FU618F, FU720F, FU820C, FU820F, FU002F, FU617FT.
FM70FT,
ML8533, ML8536
YU191B, YU191C, YU-148, YU-108(3CX4500H3), YU-148(3CX6000A7), YU-191B,
YL1050, YL1057, YL1631, YL1420,
CQK25-2, CQK50-2
3CX2500H3, 3CX2500A3/F3, 3CX3000A7, 3CX3000F7, 3CX1500D3, 3CX10000D3, 3CX10000A3/A7, 3CX10000H3, 3CX15000A3/A7, 3CX15000H3, 3CX20000H3, 3CX20000A7,
3C(P)X800A7, 3C(P)X1500A7, 3CPX5000A7,
3CW5000F1/F3, 3CW40000H3, 3CW45000H3, 3CW20000A7, 3CW20000H3, 3CW20000H7, 3CW30000H3/A7, 3CW30000H7, 3CX2500A3, 3CX2500F3, 3CX2500H3, 3CX3000A7, 3CX1500A7, 3CW20000A7,
4CX250B, 4CX250R, 4CX250FG, 4CX800A/RY-74B, 4CX800A, 4CX350A, 4CX350F, 4CX1000A, 4CX1500B, 4CX3500A, 4CW1000A, 4CX1500A, 4CX3000A, 4CX5000A, 4CX5000R, 4CX7500A, 4CX10000D/J, 4CX15000A, 4CX20000C/D/E, 4CV100000C, 4CX250K, 4CX1500A, 4CX3000A, 4CX15000A, 4CV100000C, 4CX35000C, 4CX5000A
5CX1500A,
CTK12-4, CTK12-1, CTK15-2, CTK-25-4, ITK12-1, ITK3-1, ITK5-1, ITK15-2, ITK30-2, ITK60-2, ITL12-1, ITL3-1, ITL5-1, ITL9-1, ITL15-2, TH5-6, TH6-3A, TH382, TH382, TH584, TH338, TH331, TH537, TH527, TH327, TH582, TH558, TH610, TH375, TH576, TH373, TH328, TH347, TH375, TH537, TH558, TH373.
E3061, E3062, E3062E, E3069, E3130,
RS3060CL, RS3060CJ, RS3021CJ, RS3026CJ, RS3040CJ, RS3041CJ, RS3041CJ/CLX, RS3040CJ/CLX, RS3060CJ/CLX, RS3021, RS2048CJ, RS2048CJC, RS1034SK, RS1034SL, RS1072C, RS2054SK,
8560AS, 928F/836F, 8741, 7T85, 7T69, 8F75R, 7F71RA, 8F68R
6T51, 6T58RA, 7T62R, 7T62RE, 7T85RB, FU-947F, 7T69RB, 7T84RB, 7T69RB, 8T25RA, 8T85RB, 8T87RB, 8F76R, 8T69JB,
SK300 Socket, SK1300 Socket, SK2210 Socket, SK184 Socket.
Prod Model: TH375, TH537, TH558, TH576
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Filament Voltage: 18V
Filament Current: 430A
Amplifcation Factor: 4.3
Power: 300kw
Working Position: Vertical
Max Height: 560mm
Max Diameter: 310mm
Max Weight: 56kg
Cooling: Water and Forced Air
Type: Tetrode
Cooling Method: Water and Forced Air
Function And Usage: High Frequency Electron Tube for Broadcasting
Operating Frequency: 300MHz
Current Capacity: 430A
Material: Metal Ceramic
Shielding Way: Other
Craft: Other
Encapsulation Structure: Other
We were established on August, 2004. The company located in Ningbo high-tech zone, Ningbo city, zhejiang province, China. It's one of the most professional lighting products and industrial electrical components enterprise in China. Also was one of technology-based enterprise in zhejiang province. The enterprise covers a areas of 10, 000 square meters. Workshop 6, 000 square meters. The company have decades domestic-advanced automatic produce line. Also have completely lighting, electric and chrom detect instruments. Especially we have a learning-type management group and high-level technical group.

The main products of our company including: LED lighting products, LED bulb light, LED tube light, LED lights retrofit kits, Electron triode, Electron tubes, Vacuum tubes and electronic components. Our products can be used on civilian, industry, fire-fighting, army service and other fields. The company adheres to the idea of: Fine credit, sincerity and honesty, Participate to the market competition by the superior goods wth excellent service and innovative manager. Our products have exported to more than twenty countries and regions like: Europe, USA, Russia, South America, Southeast Asian nations, Australia. The company already past ISO9001-2000 approve. We also have "SHINEKOO, SUNE, SETEC" three brands. The products have got CE, RoHS, UL certificate. Due to the good quality and excellent service, we got a good reputation among the customes from clients! "Sincerity and innovate, prompt response, customer's satisfy" was our quality principle. Also the innovate was the base of our fast development. The company devoted to research and produce new lighting products to satisfied the requirement of different level customers! The company also cooperate with famous universaty in China, and employed the professional management team to strongth technology innovate and management operate.
