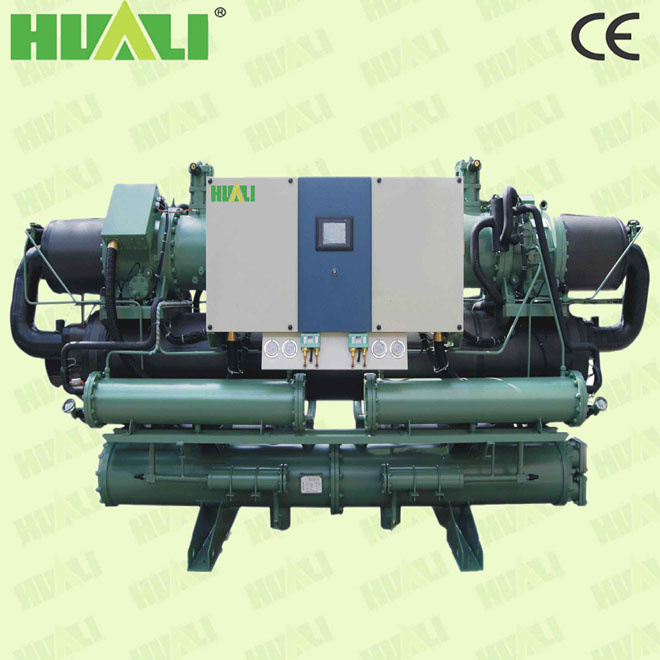

Low temp water chiller:
This series product uses semi-sealed single-screw compressor which is featured for high efficiency, low noise, and small vibration, less wearing parts, simple maintenance and more and it is suitable for conditions have high requirements for vibration and noise and more
They are extensively used in air-conditioning for hotels, restaurants, hospitals, supermarkets, office buildings, recreation place and more or supply of cool water for factory
Capacity 80 to 670kW
Model HLWD ~ |
500DLY |
555DLY |
590DLY |
620DLY |
720DLY |
790DLY |
850DLY |
950DLY |
1190DLY |
1400DLY |
1560DLY |
500DLRY |
555DLRY |
590DLRY |
620DLRY |
720DLRY |
790DLRY |
850DLRY |
950DLRY |
1190DLRY |
1400DLRY |
1560DLRY |
Rated Cooling Capacity |
X1000 Kcal/h |
431.6 |
477.2 |
509.0 |
532.2 |
618.2 |
679.3 |
730.0 |
815.1 |
1020.6 |
1202.1 |
1342.2 |
KW |
502 |
555 |
592 |
619 |
719 |
790 |
849 |
948 |
1187 |
1398 |
1561 |
USRT |
142.7 |
157.8 |
168.3 |
176.0 |
204.4 |
224.6 |
241.4 |
269.5 |
337.5 |
397.5 |
443.8 |
Input Power |
KW |
255.4 |
284.0 |
301.2 |
317.2 |
365.4 |
401.4 |
427.4 |
475.0 |
604.4 |
707.6 |
782.2 |
Comp.Input Power XQTY (kw) |
127.7×1 |
142.0×1 |
150.6×1 |
158.6×1 |
182.7×1 |
200.7×1 |
213.7×1 |
237.5×1 |
302.2×1 |
353.8×1 |
391.1×1 |
Comp.Current (A) |
429.4 |
477.6 |
506.4 |
533.2 |
614.4 |
674.8 |
718.6 |
798.6 |
1016.0 |
1189.8 |
1315.0 |
Power Supply |
3 PH-380V-50HZ |
Protection Device |
Phase reversion protection, Phase lack protection, Overload current protection,
Discharge air temperature protection, Low&High pressure protection, Low temp protection, Water flow protection. |
Number of Refrigeration Circuit |
2 |
Capacity Control (%) |
0, 25,37.5,50,62.5,75,87.5,100 |
Refrigerant Charge (kg) |
188 |
204 |
220 |
230 |
268 |
296 |
316 |
354 |
436 |
512 |
584 |
Condenser |
Shell and Tube Type |
Water Side Max Pressure (MPa) |
1 |
Dia.of Pipe to Condenser (inch) |
4"×2 |
5"×2 |
5"×2 |
5"×2 |
5"×2 |
5"×2 |
5"×2 |
6"×2 |
6"×2 |
8"×2 |
8"×2 |
Cooling Water Flow (m 3 /h) |
130.2 |
144.3 |
153.6 |
161.0 |
186.5 |
204.9 |
219.5 |
244.7 |
308.1 |
362.1 |
403.0 |
Condenser Water Pressure drop
(kPa) |
43 |
44 |
47 |
50 |
56 |
58 |
63 |
69 |
72 |
75 |
80 |
Evaporator |
Shell and Tube Type |
Water Side Max Pressure (MPa) |
1 |
Dia.of Pipe to Evaporator (inch) |
6" |
6" |
8" |
8" |
8" |
8" |
8" |
8" |
8" |
10" |
10" |
40% Glycol Flow Capacity (m 3 /h) |
99.2 |
109.7 |
117.0 |
122.3 |
142.1 |
156.1 |
167.8 |
187.3 |
234.6 |
276.3 |
308.5 |
Evaporator
Water Pressure drop (kPa) |
58 |
35 |
38 |
68 |
73 |
95 |
63 |
69 |
72 |
75 |
80 |
Running Noise dB(A) |
75.0 |
75.0 |
75.0 |
75.0 |
75.0 |
75.0 |
75.0 |
75.0 |
75.0 |
75.0 |
75.0 |
Total weight (Kg) |
4560 |
4940 |
5350 |
5890 |
6390 |
6850 |
7080 |
7330 |
9000 |
9700 |
10300 |
Running Weight (Kg) |
5780 |
6260 |
6700 |
6940 |
7170 |
7430 |
7760 |
8110 |
10160 |
11000 |
11600 |
