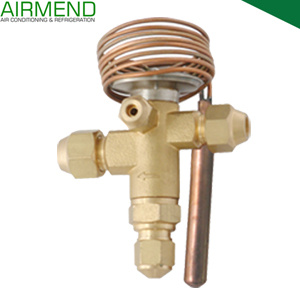

thermostatic expansion valve (TV series) brand product for HVAC
ASTV, BWTV, ETV series thermostatic expansion valves can be used for refrigeration cabinet, ice machine, dehumidify unit, and refrigeration and air conditioning requirements in a wide range of temperature. The nominal capacities of ETV are 14~100 tons, can fit for large refrigeration systems.
Features
1.Constant superheat adjusting performance.
2.Wide range of evaporating temperature: -40 to +10 celsius.
3.Can be supplied with MOP (Max. Operating Pressure).
4.The large effective area of diaphragm makes the valve have stable functions.
5.Adjust to refrigerant R410a.
Technical parameter
Max. body temperature: 80 celsius
Max. bulb sensing temperature: 60 celsius
About R134a,R22,R407C,R404A/R507 system:
Max. working pressure: 3 MPa
Max. testing pressure: 3.3 MPa
About R410A system:
Max. working pressure: 4.2 MPa
Max. testing pressure: 4.6 MPa
