Thermostatic Head (TF-9)

Thermostatic Head (TF-9)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Piece
Pay Type: L/C,T/T,D/P,Paypal,Western Union
Application :

A thermostatic radiator valve (TRV) is a self-regulating valve fitted to hot water heating system radiators, to control the temperature of a room by changing the flow of hot water to the radiator. Usually used in floor heating systems .




Regulation scale:




Installation :

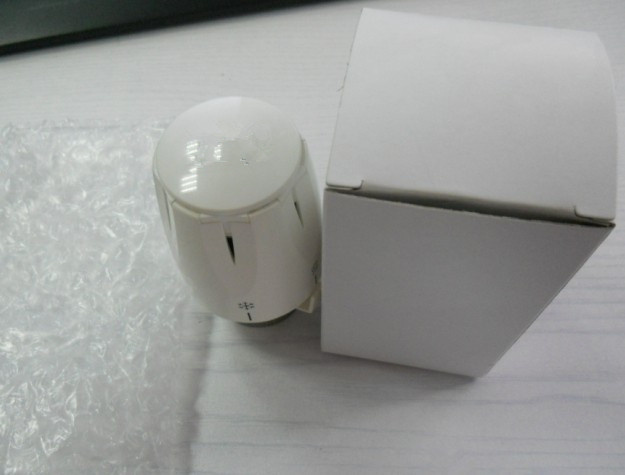

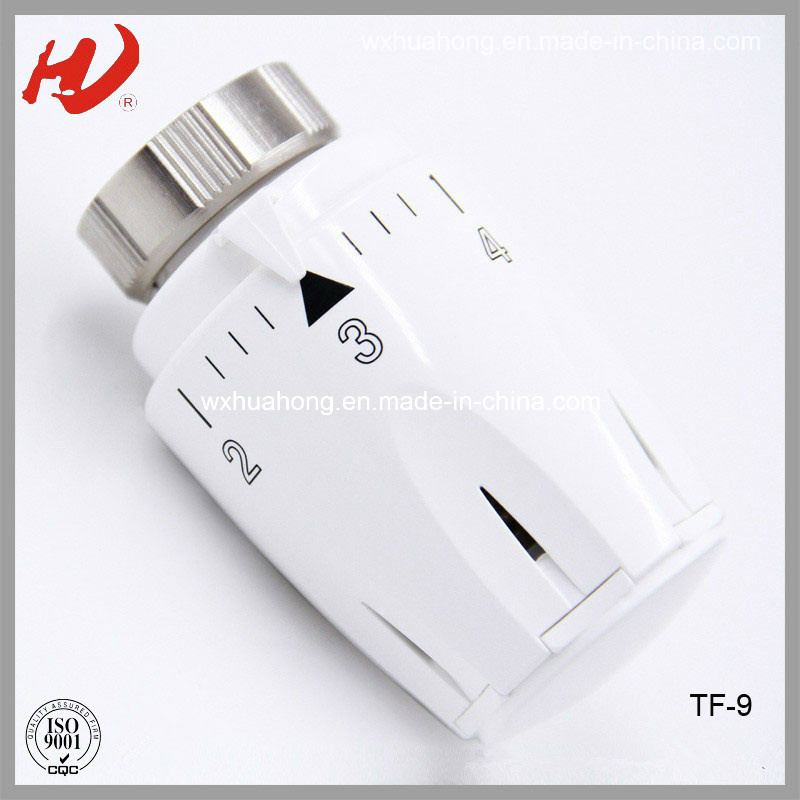

Product  image :


ModelTF-9
Color white
Sensorbuilt-in liquid sensor
Temperature range6- 28 degree C
Max.admissible static pressure1.0MPa
Max.admissible differentital pressure0.1MPa
Connection M30X1.5
Closing dimension12.4 mm
Defrost protection6 degree C


Packing 100 pcs/CTN
 G.W.16 KG

Prod Model: TF-9
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection: M30X1.5
Sensor: Built-in Liquid Sensor
Color: Ral9016
Type: Temperature Controller
Control Type: Mechanical
Usage: Floor Heating Thermostats
Display Type: No
Material: ABS
Wuxi Huishan Automatic Controller Co. Ltd., was founded in 1988. We are located in Wuxi city, which is 40 mins Far away From Shanghai by train. Financial and commercial center of China. After 20 years development, we have set up a new 8400m2 standard moredn workshop, equipped with advanced machinery and testing laboratory which enable us to be a professional manufacturer for temperature control porducts. 35% of our employees are mechanic and engineer and we are ISO9001: 2000 approved.

After 20 years continuous of developing, we have been producing high quality of room thermostats, thermostatic valves, thermostatic heads, liquid sensor for TRV, temperature and pressure safety valve, industrial thermostats, pressure switches, flow switches etc. We produce strictly according to the standard with a result that many products are CQC, EN215, CE, VDE, RoHS approved. With over 10 years export experience, we expanded our market to Europe, Middle East, North America, South America, and some of our customers are famous for international companies. We also offer OEM and ODM services to our customers, based on our strong technical force. For the same reason our customers are satisfied with our quality and service. Our production capacity is over than 3 million piecess. Looking forward to developing the market and technology togther with our overseas partners, and build up a mutual prosperous future.
