1. Technical Data
A. Nominal pressure: 1 Mpa
B. Setting mark: 0-5
C. Setting range: 8-28 Celsius degree
D. Max pressure difference: 0.1Mpa
E. Valve body material: Nickel plated brass
F. Connection: BSP, DN15

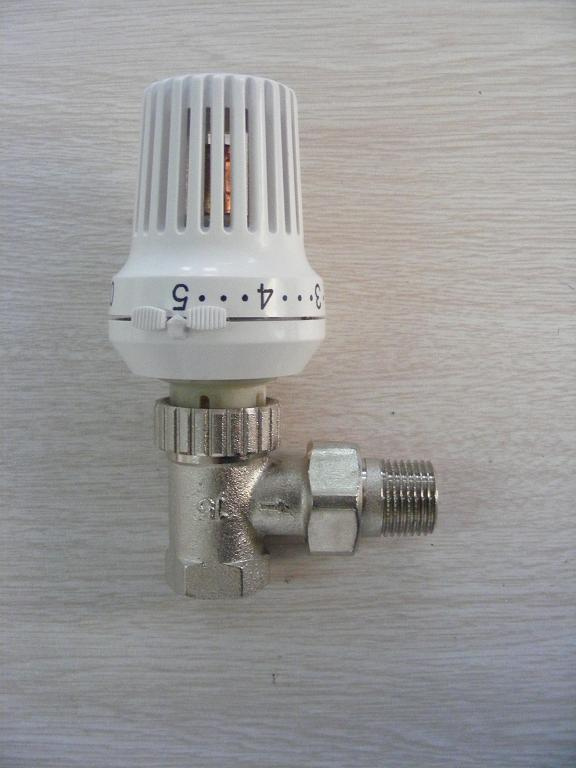

G. Type: BXHW-15-ZHI
2. We can supply different size of TRVs including DN15 (Nominal diameter), DN20, DN25. Straight valves, angle valves, three way valves, three way cross valves are all in our product line. For customers convenience, we also provide valves with PPR connecting pipe.
We can also make valves according your requirement or samples.
3. Features and Function
A. Wax sensor provides consistent and reliable performance.
B. Provide individual room temperature control by varying the flow of water through the radiator.
C. The valve body is made of non corrosive nickel-plated brass
My company is Called Shenyang Beixin Energy Saving Equipment Co., Ltd. It set up in 1992. From 1992 to 1997, it mainly produce big port thermostatic valves from DN65 to DN80.
From 1996 it began to research and design smaller thermostatic mixing valves and radiator valves. So till now, it has accumulated more above 15 year experiece in the industry of thermostatic valves. The thermostatic mixing valves(TMVs) blend hot and cold together and outlet constant temperature warm and safe water for bather.
Our factory locates in Shenyang, Liaoning Province, Northeast China. Now we have exported to South Africa, Chile, and Iran. And the clients from Cyprus, USA, Austrilia, Isreal are testing the valves and have give back very good feedback.
