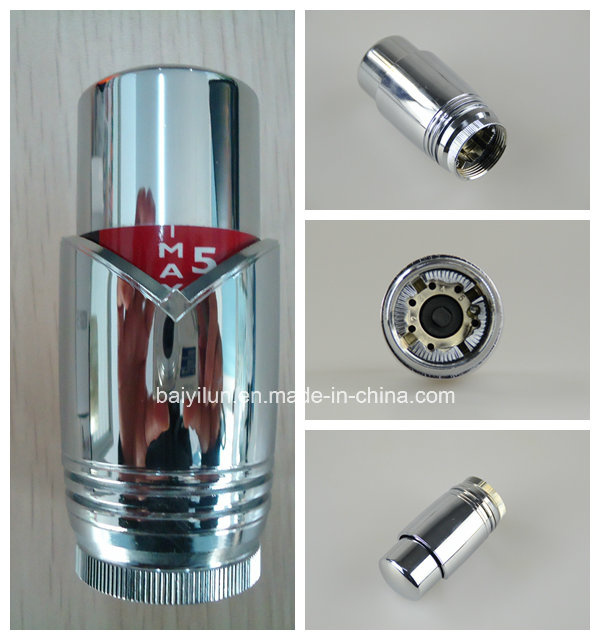

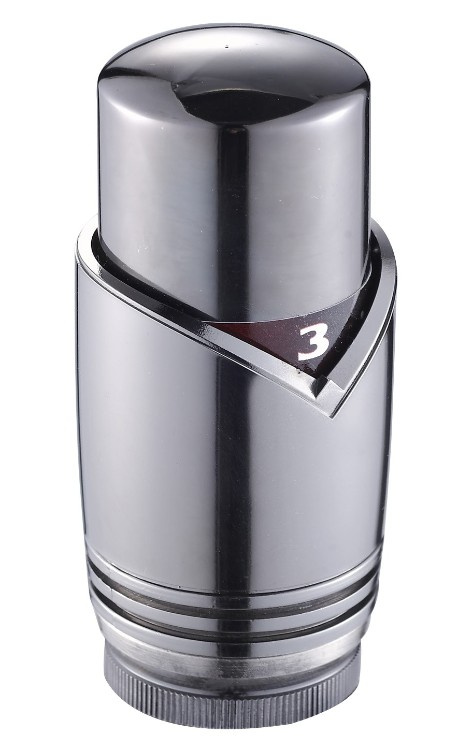

Thermostatic Radiator valve head -Liquid sensor L-G-002
Avonflow Baiyilun TRV Co.,ltd specialized in the manufacture of thermostatic radiator valve.We have produced the products for ten years and got a lot of experience.Since now ,we have exported our good to over 30 countries such as Russia,Romania, Greece,Croatia,Turkey, Poland, Ukraine and so on. Thermostatic valve1.Temperature sensorTemperature hysteresis:1.0 kMax admissible static pressure:10 barMax admissible differential pressure:1.0 barNormal pressure:16 barMax temperature resistance:110 degree Temperature extent:6-28°Brass valve body, plastic handleCan be mounted vertically or horizontally2 EN215 Standard Testing Bench, 8 automatic plastic injection machines, Over 10 years production experience on TRVs, 30 CNC machines, Over 40 exported Countries, Production Capicity around 3, 000, 000 pieces/year, Welcome you come to visit us and cooperate with us.Certificate: EN215 ,CE ,ISO9001:2008, ISO14001:2004Size:DN15/DN20/DN25 Angle/Straight Valve Weight information (valve body only) DN15
straight valve | DN15
angle valve | DN20
straight valve | DN20
angle valve | DN25
straight valve | DN25
angle valve | DN15
3 way | DN20
3 way | DN25
3 way |
| 245 g | 230 g | 315 g | 300 g | 390 g | 370 g | 360 g | 455 g | 600 g |
Connection: M30x1.5mmSetting number * to 5LimitableHysteresis: 0.5KLiquid sensorFrost protectGuarantee: 2yearsChrome platedOEM branding available
Avonflow Baiyilun TRV Co., Ltd. (old name "Wenzhou Baiyilun Hardware Co., Ltd") specializes in the development and manufacture of heating and temperature control products. Baiyilun constant temperature control valves, used in pressure temperature regulator of city heating and hot water system, are equipped with body as automatic constant temperature control valve. This valve doesn't need exterior energy while automatically controlled by indoor temperature, which can not only save energy but also protect environment and give you a suitable indoor temperature.
Manufacture and test of Baiyilun constant temperature control valve of radiator is according to GB/T13927-92; EN215-1 standard and through the test of Beijing Construction Project Quality Testing Centre. Our company also has advanced and complete testing and inspecting instrument.
2 EN215 Standard Testing Bench, 8 automatic plastic injection machines, Over 10 years production experience on TRVs, 30 CNC machines, Over 40 exported Countries, Production Capicity around 3, 000, 000 pieces/year, Welcome you come to visit us and cooperate with us.
