Approved to EN215
Passed CE/ISO9001/ISO14001
Temperature range: 6-28 ° C
Connection: M30x1.5
Setting number * to 5
Limitable and lockable
Hysteresis: 0.5K
Liquid sensor
Frost protect
Guarantee: 3 years
Chrome plated
OEM branding available
DN15/20/25 avaiable
Straight/angled valve available
Brass valve body, plastic handle
Can be mounted vertically or horizontally
Avonflow Baiyilun TRV Co.,ltd specialized in the manufacture of thermostatic radiator valve.We have produced the products for ten years
and got a lot of experience.Since now ,we have exported our good to over 30 countries such as Russia,Romania, Greece,Croatia,Turkey, Poland, Ukraine and so on.

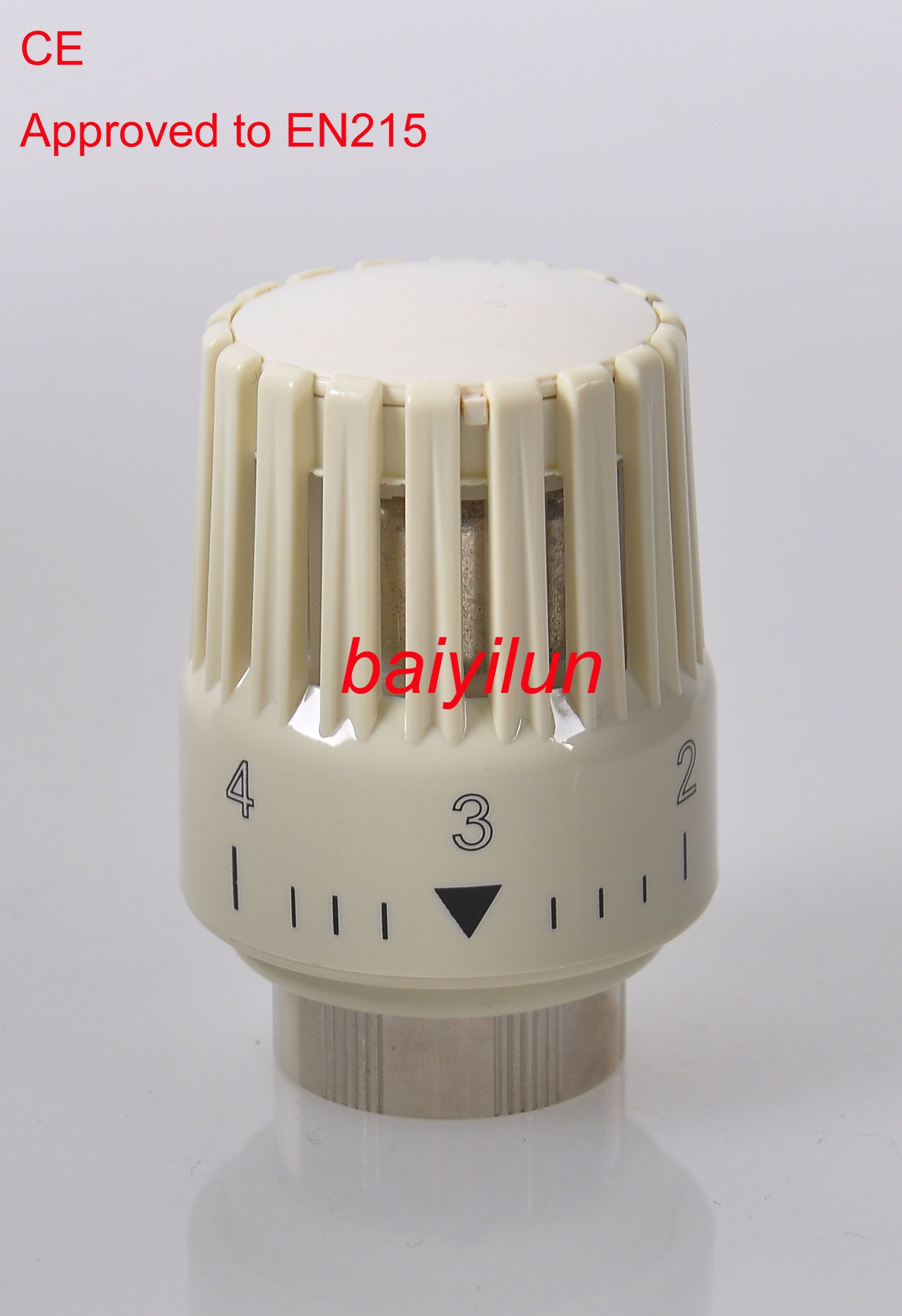

Thermostatic valve
1.Temperature sensor
Temperature hysteresis:1.0 k
Max admissible static pressure:10 bar
Max admissible differential pressure:1.0 bar
Normal pressure:16 bar
Max temperature resistance:110 degree
2.Thermostatic valve body
Made of brass, easy to be installed
Low resistance
Water temperature : less than 120 degree
Normal resistance to pressure: 10 bar
Certificate: EN215,CE ,ISO9001:2008, ISO14001:2004
Size:DN15/DN20/DN25
Angle/Straight Valve
Weight information (valve body only)
Avonflow Baiyilun TRV Co., Ltd. (old name "Wenzhou Baiyilun Hardware Co., Ltd") specializes in the development and manufacture of heating and temperature control products. Baiyilun constant temperature control valves, used in pressure temperature regulator of city heating and hot water system, are equipped with body as automatic constant temperature control valve. This valve doesn't need exterior energy while automatically controlled by indoor temperature, which can not only save energy but also protect environment and give you a suitable indoor temperature.
Manufacture and test of Baiyilun constant temperature control valve of radiator is according to GB/T13927-92; EN215-1 standard and through the test of Beijing Construction Project Quality Testing Centre. Our company also has advanced and complete testing and inspecting instrument.
2 EN215 Standard Testing Bench, 8 automatic plastic injection machines, Over 10 years production experience on TRVs, 30 CNC machines, Over 40 exported Countries, Production Capicity around 3, 000, 000 pieces/year, Welcome you come to visit us and cooperate with us.
