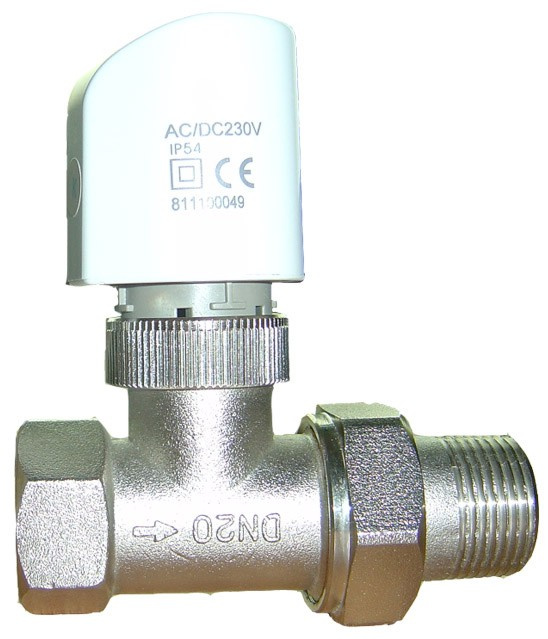

SZQ electric valve is designed to control open/close of small valve and balance valve in cooling water or hot water that is widely for air-conditioning system and water heating system. The actuator is mounted on thermostatic valve and return-water pipe.
Features
1. Paraffin propellant is imported from France
2. Spring Return design: Valve close when power is off
3. Threaded connection, easy and simply mount and demount
4. Lower noise when running
5. High anti-jamming
6. 18months Guarantee, ISO9001, CE, FCC
Specifications:
1. Size: DN15 (1/2"), DN20(3/4")
2. Valve body: Brass
3. Valve core: Brass
4. Interior material: Brass
5. 90 angle or straight
|
Type |
SZQ electric actuator |
|
Electric parameter |
230VAC(24VDC,110VAC) |
|
Power consumption |
1.8W |
|
Protection Grade |
lp54 |
|
Force |
110N |
|
Stroke |
3mm |
|
Running time |
3-5min |
|
Ambient Temperature |
-10ºC-45ºC |
|
Actuator material |
Anti-flammable PC |
|
Connection |
M30*1.5mm,thread |
