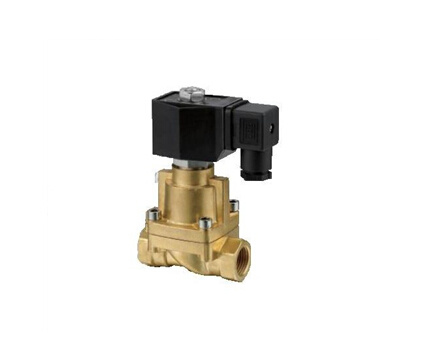

Thp Series Steam Solenoid Valve

Name: Thp Series Steam Solenoid Valve
Brand: Valve Industry
SKU: 744757325
Availability: InStock
Rating: 4.3 (59 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Zhangjiagang City Rexroth Hydraulics Co., Ltd.

Showroom Product Company Profile

With comparatively high working pressure and temperature, the THP series valve has a completely range of solenoid valves from 1/8" to 2". We have stainless steel valve and brass valve for your reference, both of SS valve and brass valve can be normal close valve and normal open valve. This series solenoid valves are most popular valves used for many conditions especially in the water treatment system.

Model: THP Series Solenoid valve
Port size: From 1/8" to 2"
Voltage: 12/24/36/48/110/220 V
Seal: EPDM, VITON, NBR, TEFLON
Orifice: From 2.5 to 50 mm
Material: Brass and Stainless Steel

Normal colse

Port size	Orifice (mm)	CV value	Pressure difference (Bar)								Max. temperature (ºC)	Power
			Min. pressure	Max. working pressure								Power
				Air/gas		Water/hot water/liquid		Light oil ≤20CST		Steam		va	w
				AC	DC	AC	DC	AC	DC	AC/DC		va	w
1/8"	2.5	0.23	0	8	8	8	8	6	6	10	180	22	13
	2.5	0.23	0	13	13	13	13	7	7	10	110.	22	13
	4.5	0.6	0	7	4	7	4	4	4	7	165	22	13
	4.5	0.6	0	7	4	7	4	4	4	7	110	22	13
1/4"	2.5	0.23	0	7	4	7	4	4	4	10	180	22	13
	2.5	0.23	0	13	13	13	7	7	7	10	110.	22	13
	4.5	0.6	0	7	4	7	4	4	4	7	165	22	13
	4.5	0.6	0	7	4	7	4	4	4	7	110	22	13
3/8"	15	4.5	0.5	25	20	25	20	20	20		110	33	32
	15	4.5	0.5	25	20	25	20	20	20	10	185	30	25
1/2"	15	4.5	0.5	25	20	25	20	20	20		110	33	32
	15	4.5	0.5	25	20	25	20	20	20	10	185	30	25
3/4"	20	9.0	0.5	25	20	25	20	20	20		110	33	32
	20	9.0	0.5	25	20	25	20	20	20	10	185	30	25
1"	25	13	0.5	25	20	25	20	20	20		110	33	32
	25	13	0.5	25	20	25	20	20	20	10	185	30	25
1-1/4"	35	26	0.5	25	20	25	20	20	20		110	33	32
	35	26	0.5	25	20	25	20	20	20	10	185	30	25
1-1/2"	35	26	0.5	25	20	25	20	20	20		110	33	32
	35	26	0.5	25	20	25	20	20	20	10	185	30	25
2"	50	48	0.5	25	20	25	20	20	20		110	33	32
	50	48	0.5	25	20	25	20	20	20	10	185	30	25

Normal Open

Port size	Orifice (mm)	CV Value	Pressure difference (Bar)					Max.temperature (ºC)	Power
			Min.pressure	Max. working pressure					VA	W
			Min.pressure	Air/gas	Water/hot water/liquid	Light oil≤ 20CST	Steam		AC 220	DC 24V
3/8"	15	4.5	0.5	8	8	8	8	130	33	32
	15	4.5	0.5	8	8	8	8	130	33	32
1/2"	15	4.5	0.5	8	8	8	8	130	33	32
	15	4.5	0.5	8	88	8	8	130	33	32
3/4"	20	9.0	0.5	8	8	8	8	130	33	32
	20	9.0	0.5	8	8	8	8	130	33	32
1"	25	13	0.5	8	8	8	8	130	33	32
	25	13	0.5	8	8	8	8	130	33	32
1-1/4"	35	26	0.5	6	6	6	6	130	33	32
	35	26	0.5	6	6	6	6	130	33	32
1-1/2"	35	26	0.5	6	6	6	6	130	33	32
	35	26	0.5	6	6	6	6	130	33	32

Prod Model:	THP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Water Industrial Usage
Material:	Brass Stainless Steel
Power Supply:	AC/DC

Zhang Jiagang Rexroth Hydraulics & Pneumatics Co, Ltd which had been known as Zhang Jiagang Guosen Hydraulics Technology Co, Ltd was founded in 2014. It is located in Zhang Jiagang, Suzhou-Wuxi-Changzhou agglomeration in the Yangtze River Delta. We specialize in producing and selling all kinds of pneumatic components, hydraulic components and even complete sets of the equipment. Those hydraulic stations and cylinders which were produced by our company have been widely applied in construction machinery, special purpose vehicles, metallurgy, shipbuilding and etc. We have kept good cooperating relationship with several well-known domestic enterprises. We have passed ISO 9001 certification. Being experienced in manufacturing hydraulic and pneumatic equipments makes us have the ability to meet the demand of high quality and high-level stability. In addition, our company sells solenoid valves, impeller-type pumps and other components as a selling agent of YUKEN.

As a professional and reliable company, we offer perfect technology consulting service. We will try our best to be extremely professional when answering the questions and offering help. People foremost, quality first, technology leading and integrity is what we pursuit all the time. We are looking forward to making more friends, cooperating with each other for a better future!
