1) Features and Benefits:
ISO 5211 Direct Mount Pad
No bracket or drive coupling needed for automation
Eliminates exposed moving parts for safer work environment
Direct drive eliminates play and improves actuator positioning
High-Cycle, Live-Loaded Stem Packing
Ensures tight seal
Extends service life
O-Ring Stem Bearing
Maintains stem alignment
Reduces packing side loading and wear
Enhances stem seal
Blow-Out-Proof Stem
Stem is bottom loaded to prevent removal when valve is in service
Full Port Design
Improves flow resulting in increased process efficiencies

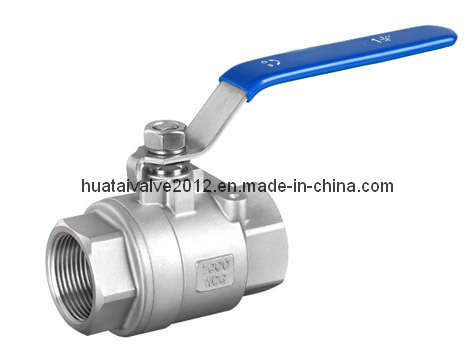

2-Piece Construction
Our most economical direct mount design
Locking Device
Enables plant personnel to secure valve in open or closed position when manually operated
Investment Cast Body and Cap
Improves dimensional control and reduces porosity
Anti-Static Device for Ball-StemBody
Pressure Blance Hole in Ball Slot
Operating / Test Conditions:
Temperature Range: -20 to 190
Maximum Working Pressure:
1000 PSI WOG
Working Medium: Water, Oil, Gas, Acid, etc.
Design: ANSI/ASME B16.34
Inspection&Testing: API 598
End connections: NPT to B1.20.1, BSPT to DIN2999, BSP to DIN259
Options
Pneumatic operation, Electric operation Available
Low Pad is available
Body Material: ASTMA351-CF8M, CF8,
CF3M, CF3
ASTM A216-WCB
HUATAI (Zhejiang) Valve Manufacturing Co., Ltd. Locates in Linpu Road DongOu Industrial Zone Oubei Town Wenzhou City Zhejiang Province, where is usually called "Origin of China-made Valve and Pump". The transportation is very convenient Near No. 104 Highway and Wenzhou Downtown. Strictly Following the international standards (API, DIN, JIS) We have more than 20 years experience in producing ball valve.
Our main products including casted steel trunnion/floating ball valve, forged steel trunnion/floating ball valve, NPS ball valve and full-welded ball valve, etc. Especially the full-welded ball we have made great breakthrough and gained huge achievement.
The product lines cover many kinds of casting steel, casting iron butterfly, gate, check, globe valves. These products are widely applied to the petrochemical, power, metallurgy, foodstuff, paper-making construction and other industries. Addionaly, our completely self-developed special valve for spewing coal service and the large size ball valve have obtained the new product appraisal certificate, and Huatai's large size obit ball valve has contributed greatly to the National Major Project of long distance line & gas transportation pipelines.
Huatai has considered the methods of comparing and learning from the world outstanding enterprises as its perennial developing policy. The whole manufacturing processes of its products including design. Producting and testing has been basically computerized(assisted and recorded). Meanwhile, the manufacturing processes are totally controlled accordingto the international qualitymanagement standards. Huatai has successfully certified by ISO9001, CE and API 6D quality system.
To service the customers better, Huatai has seted up Shanghai and Beijing sales Office sucessfully. In the light of "Customer's request will be our promises ", Huatai is sincerely looking forwards to the cooperation with you!
