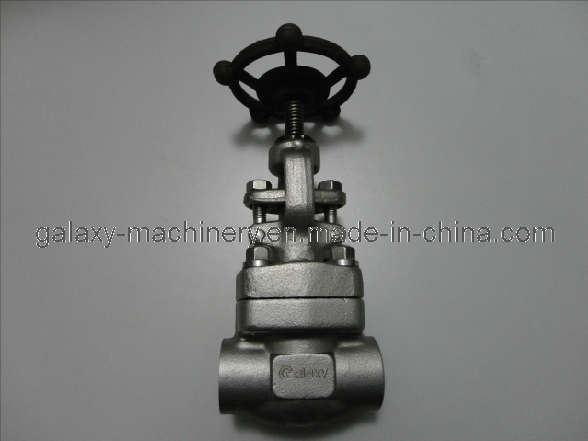

Galaxy small size thread forged steel gate valve has good quality with competitive price.
Design and manufacture: API 602, ASME B16.34, BS 5352
Thread end dimensions to: ANSI B1.20.1
Size: 3/8"~2"
Pressure: 150LB, 300LB, 600LB, 800LB.
Material: A105, F304(L), F316(L), LF2, F5, F11, F22, F321, F51, Monel
Test and inspection: API 598
Structure feature: Bolted bonnet and outside screw and yoke (OS&Y), welded bonnet (W. B), and outside screw and yoke (OS&Y).
Medium: Water, Oil, Gas, steam, oil products etc.
|
No. |
Parts name |
A105/F6a |
A105/F6aHFS |
LF2/304 |
F11/F6aHF |
F304(L)/F304(L) |
F316(L)/F316(L) |
|
1 |
body |
A105 |
A105 |
LF2 |
F11 |
F304(L) |
F316(L) |
|
2 |
seat ring |
410 |
410HF |
304 |
410HF |
304(L) |
316(L) |
|
3 |
disc |
F6a |
F6a |
F304 |
F6aHF |
F304(L) |
F316(L) |
|
4 |
stem |
410 |
410 |
304 |
410 |
304(L) |
316(L) |
|
6 |
bonnet |
A105 |
A105 |
LF2 |
F11 |
F304(L) |
F316(L) |
|
8 |
pin |
410 |
410 |
410 |
410 |
304 |
304 |
|
9 |
packing gland |
410 |
410 |
304 |
410 |
304 |
316 |
|
10 |
drop bolt |
B7 |
B7 |
L7 |
B16 |
B8(M) |
B8(M) |
|
11 |
paking plate |
A105 |
A105 |
LF2 |
F11 |
F304 |
F304 |
|
12 |
hexagon nut |
2H |
2H |
2H |
2H |
8(M) |
8(M) |
|
13 |
stem nut |
410 |
410 |
410 |
410 |
410 |
410 |
|
14 |
tightening nut |
2H |
2H |
2H |
2H |
2H |
2H |
|
15 |
name plate |
AL |
AL |
AL |
AL |
AL |
AL |
|
16 |
handwheel |
A197 |
A197 |
A197 |
A197 |
A197 |
A197 |
|
17 |
lubricating gasket |
410 |
410 |
410 |
410 |
410 |
410 |
|
18 |
packing |
graphite |
graphite |
graphite |
graphite |
graphite |
graphite |
|
37 |
stud |
B7 |
B7 |
L7 |
B16 |
B8(M) |
B8(M) |
|
38 |
nut |
2H |
2H |
8 |
8 |
8(M) |
8(M) |
|
39 |
metal ring |
304 |
304 |
304 |
304 |
304(L) |
316(L) |
