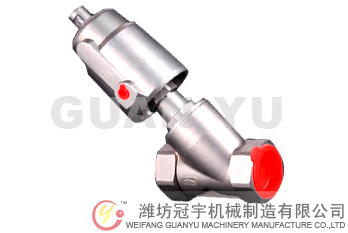

Pneumatic Angle Seat Valve
Control Type: Double acting, Single acting
Size: DN10 ~ DN50 (3/8" ~ 2")
Connection: BSP or NPT threaded /Welding/Clamp
Valve Actuator Size: 40mm, 50mm, 63mm, 80mm
Valve Body Material: CF8M (AISI 316) or CF8 (AISI304)
Actuator: CF8 (AISI304)
Seat: Teflon (PTFE)
Applicable Fluid: Water, alcohol, oil, fuel, steam, neutral gas or liquid, organic solvent, acid and lye
Fluid Pressure: Max. 1.6MPa (16 bar, 232Psi)
Fluid Temperature: -10 - +200
Max. Viscosity: 600 mm2/s
Control Fluid: Neutral gas, air
Control Pressure: 0.3 - 0.8MPa
Ambient Temperature: 0 - +80C
Product Description
Advantages:
1. Easy installation, maintenance-free, super long life;
2. Self-adjusting stem seals, reliable operation, , cylinder can be 360 rotated free;
3. Anti-corrosive, high flow rate, low fluid resistance, no water-hammer;
4. Low control air consumption. Optical position indication.
My company was established in May 2004, at the beautiful kites all the world.
We set the company research, development, casting, processing, testing, technical services as one. Our mainly product: Stainless steel valves, camlock coupling, pneumatic angle seat valve, Ball Valve, Knife Gate valve. And we can do all types of stainless steel casting business. Products used for drainage, food, oil, chemicals, electricity, medicine and other industries.
My company has a leading silica sol casting production lines and production CNC machining centers, using advanced casting technology and hi-tech spectrometer detection technology and strict implementation of ISO-9001 quality system standards to quality, integrity-based Business philosophy, customer service, contributing to society.
