Three Eccentric Butterfly Valve
| Price: |
US $ 15-3000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Specifications
Multiple accuracy control
Several control methods and functions
High quality
Complete specifications
Long service life

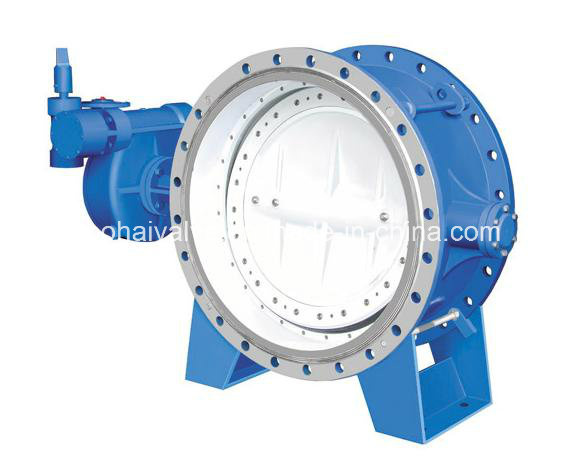

Three eccentric butterfly valve with electric actuator
Summary Control the air. Suitable for the mediums like large flow and low differential pressure. It includes centerline wafer butterfly valve-economic and practical, whole lining type suiting for antiseptic liquids, three-eccentric center butterfly valve - good airproof effect and air butterfly valve -especially control the air. Electric Control Butterfly Valve Series and Type The name of product | Type | Nominal pressure | Valve body material | Electric regulating wafer centre line butterfly valve | BELLAJWA 1 1/2''-40'' | PN1.0
PN1.6 | Cast iron Cast steel Cast stainless steel | ZAJWA 1 1/2''-40'' | Electric regulating flange lining butterfly valve | BELLAJWF 2''-12'' | ZAJWF 5''-12'' | Electric regulating three eccentric centre hard seal butterfly valve | BELLAJWSY 4''-80'' | ZAJWSY 4''-80'' | Electric regulating air regulating butterfly valve | BELLAJWK 8''-80'' | ZAJWK 8''-80'' |
Supply Voltage: 220volt or 380volt Electronic Type: input signal 4-20mA, feedback signal 4-20mA Non-electronic Type: the importation has a source switch the quantity signal, feedback signal 4-20mA. |
|
| Prod Model: |

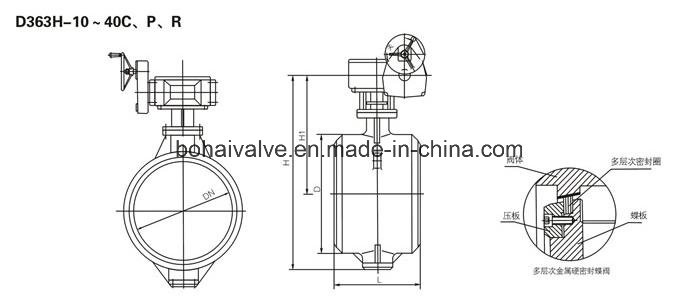

D363h-10C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn3000 |
| Connection Form: |
Flange |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Structure: |
Centre Sealing |
| Seal Form: |
Supercharging Pressured Sealed |
| Working Temperature: |
Normal Temperature (',-40??C
|
| Application: |
Household Usage |
| Material Of Seal Surface: |
Soft Sealed |

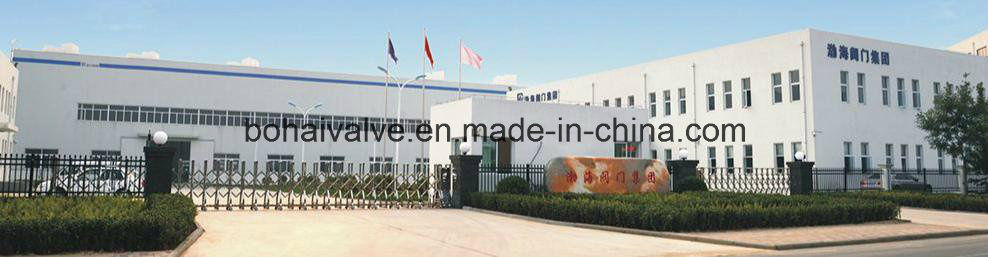

Founded in 1980 and headquartered in Bei-Zha-Kou Electronic Industrial Park, Jinnan District, Tianjin, a place incorporated into the prosperous Bohai economic rim, Bohai Valve has been and will continue exploring and innovating. In 2014, Bohai Valve was promoted to a non-area-limited group company in China. The group company is committed to providing stable and reliable fluid control solutions aiming at engineering fields including hydropower, thermal power, steel making, metallurgy, petroleum, chemicals, sewage treatment and water systems.
The group company covers a land of more than 80, 000m2 for its valve manufacturing base and casting factory, and possesses all necessary production and testing means. It is a lare valve manufacturer engaged in valve development, manufacturing, and sales.
Major product lines are manufactured with reference to ANSI, API, DIN, BS, JPI, and JIS standards and China's GB standards by means of the latest technologies favored across the world. They include butterfly valves, gate valves, ball valves, globe valves, check valves, hydraulic control valves, cryogenic valves, throttle valves, metallurgical valves, oxygen tubing valves, and HPHT valves, which are available in more than 100 series and thousands of sizes, with pressure rating ranging from 1.0MPa to 10MPa and port size from DN50 to DN4000. These valves can be operated manually, electrically, pneumatically, hydraulically, and/or electro-hydraulically, and made of different materials, manufactured to different types and sizes, and therefore meet the need for one-stop purchasing.

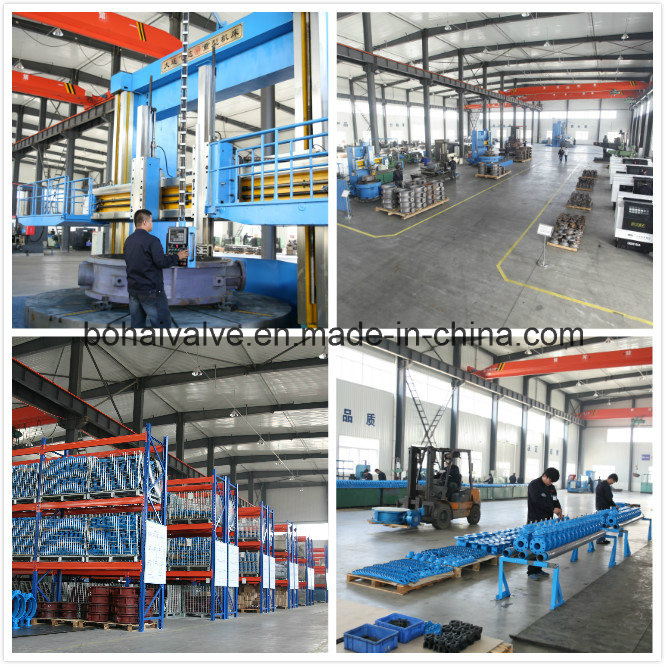

To ensure the stability and reliability of its quality, the group company uses CNC machine tools, CNC multi-station machining center, extra large processing size (5 meters) vertical lathes and large drilling center for its major machining tasks, maintaining a world automation level throughout its production process. The group company also procures advanced detection equipment and type testing platform for nondestructive testing, spectrum analysis, CMM measuring, supersonic spraying, heat treatment, low leakage test, life test, low temperature performance test, and wear and high temperature resistance test, which not only enhances the machining and testing ability of the factory but also supports the development of new products for harsh industrial environment, thus ensuring the stability of product quality.
The group company also has a large casting base and owns a B3R 125 electric furnace, 3-ton, 5-ton, and 10-ton cupola furnaces, a mobile resin molding line, an epoxy powder spraying line, and a testing center, providing strong and powerful hardware guarantee for the manufacturing of quality valves.
Bohai Valve has long used the advanced management concepts to their factory management and applied the resource management system and warehouse management system to all its products for quality management. It is also one of the first valve manufacturers in China that have passed the ISO 9001, ISO 14001 and OHSAS 18001 certifications. Over the past years, it has been awarded national TS permit and U. S. API certificates for both the company and its products. Bohai Valve now is a member of the supply network for State Grid Corporation's power plants, a member listed in the supply networks of China's other four biggest power companies, a company member of China Engineering Construction Industry Association, and the largest supplier of hydropower valves in China.
We maintain our devotion to innovation and keep learning to gain creative ideas and capabilities, transforming our status from a traditional manufacturer to a tech-based enterprise and developing world advanced valve products. For this purpose, the group company set up the Valve Technology Research Center and pooled together the nation's leading experts and engineers so as to provide the most professional solutions with respect to product development, design, manufacturing and testing.
