■Application
Three way ball valves are suitable for use on various kinds of pipelines of Class150~Class300, PN16~PN40 for switching, dividing, and combining medium flow, of which the operation manners include manual, worm gear, pneumatic or electric actuators, connection manners are in general of flanges. As required by customers, the other type of connection is available too.
■Structure and features

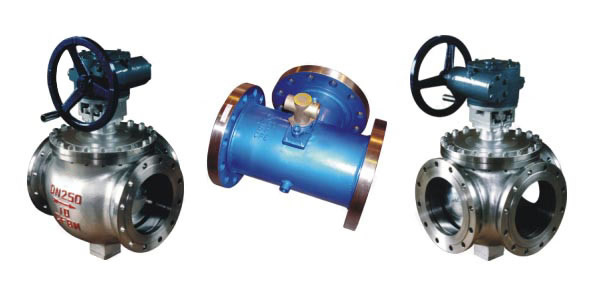

L type three way ball valve (type of Q44) is used for pipelines to switch the flow direction, being able to switch on two flow lines perpendicular with each other. T type three way ball valve (type Q45).
May be used to divide, combine or switch the flow direction. T type ball passage is able to switch on three flow lines or switch on two of the three flow lines. T type ball valve may realize two, three or four seats of the functions, however, the specific valve design must draw a distinction between them to realize different function. In this respect, as selecting and ordering by customers, it is necessary to describe in detail the application requirement so as for zhengguang company to make correct design and fitting. Regarding the general Floating three way ball valve, it is unsuited to be used for certain working conditions, which must be made clear to the customers for making right selection. There are many kinds of three way ball valves with unique designs made by zhengguang company to meet customers' special working conditions and requirement. For the common three way ball valves, zhengguang company adopts in general the design of two seats. As required by customers, zhengguang company can also design and manufacture the three way ball valves with four seats.
Zhejiang Zhengguang Valve Co., Ltd. is loceted in ou bei town which is called china pumps & valves village. The company was established in 1993, which is a technological valve manufacturer, covering an area of 38000m2, including factory structural area of 22811m2, with 358 staffs including including 3 senior engineers and 38 specialty technology persons. And 260 sets of various facilities.
The company's management strictly complies with the up-to-dated enterprise system, and its quality management system is running well and perfect.
The company mainly manufactures the valves according to API, ANSI, DIN, BS, JIS, ISO, MSS SP and AWWA and Chinese GB and JB standards. The main products include Gate Valve, Globe Valve, Check Valve, Ball Valve, Plug Valve, Butterfly Valve, Special Safety Valve, Strainer, Flanges, etc. The size ranges from 1/4" to 80"(DN6-2000mm). The pressure ranges from Class 150 to Class 2500(0.1MPa-42.0MPa), and the operating temperature range is -196ºC~680ºC. The main materials of the products are carbon steel, stainless steel, heat-resist alloy steel, Monel, low-temp steel and other special steels etc.
The products are widely used in the field of petroleum, chemical, metallurgical, power, fuel gas, city pipeline networks. The products have been exported to USA, Canada, Japan, Spain, France, Italy, England and other countries. With high content of technology and reliable quality, our products have gained good fame from the customers.
Hope to cooperate with both old friends and new clients to pursue and realize a brilliant future in the new 21st century.
