Three Way Electric Motorised Valve

Three Way Electric Motorised Valve
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union

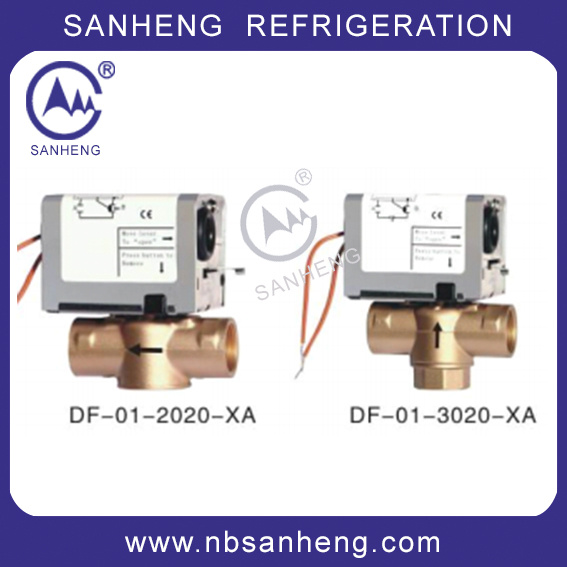

Motorised Valve (DF/F-01-215) with Good Quality

Product description
DF/F Series Motor Valve is available for central air-conditioner system and opening/closing of the heating system pipe to control the temperature. The control valve is driven by the one-way magnetic sync motor. The valve is normal close when it doesn't work. When it starts to work, the thermostat provides a signal to make the motor valve work. After the valve opens, the cold or hot water will enter the fan coil to provide the cold or hot air for the room. When the room temperature reach to the setting, the thermostat will cut off the motor valves current and the return spring will close the valve to prevent the water from entering the fan coil. The room temperature can be kept that was set by thermostat by opening/closing the valve.

The driver of DF/F series motor valve is connected with the valve by the coupling. After the valve is installed, then the driver can be installed.

Package information:
Standard export packing or per customer's requirement

Our service:
We can produce different customized products according to customer's actual requirements.

Company description:
Ningbo Sanheng Refrigeration Control Co., Ltd. Is located at Xikou Industrial Zone, Ningbo City, Zhejiang Province. It is specializes in developing and manufacturing of refrigeration unit, refrigerated air dryer, Refrigeration Parts, Air Conditioner Parts and Auto A/C Parts, like refrigeration solenoid valves, thermal expansion valves, manifold gauge set, filter drier, ball valve, many kinds of expansion valve for Auto A/C and so on.

After decades of development, we have a professional refrigeration technology team with affluent practical experience, self-developed special-purpose welding lines and unique testing equipment and advanced injection technologies. Meanwhile, we focus on improving the quality and stability of product, keep on investing in the introduction of various high-tech equipment, now we have a complete set of production equipment, such as high-precision CNC lathes, automated assembly lines and so on. They help us to strictly control product quality and stability. Our company has passed ISO9001-2000 certificate and CE certificate.

Sanheng Company relies on the "Sanheng"spirit, I. E. "Quality Eternal, Service Eternal, and Prestige Eternal". We believe that we will make great contribution to refrigeration industry.

Certificates:

ISO9001: 2008

CE

ROHS
Model         Valve TypeConnectionFlow FactorWorking
Medium
Medium
Temperature
Ambient
Temperature
Bearing
Pressure
Voltage
DF/F-01-215two wayG1/2"2.0KvCold water
/Heat water
2~94degree 0~65degree2.0Mpa220V/ 50-60HZ
DF/F-01-315three wayG1/2"2.0Kv
DF/F-01-220two wayG3/4"2.6Kv
DF/F-01-320three wayG3/4"2.6Kv
DF/F-01-225two wayG1"2.8Kv
DF/F-01-325three wayG1"2.8Kv










Model           Valve TypeConnectionFlow FactorWorking
Medium
Medium
Temperature
Ambient
Temperature
Bearing
Pressure
Voltage
DF/F-02-215two wayG1/2"2.5KvCold water
/Heat water
2~94degree0~65degree2.5Mpa220V/ 50-60HZ
DF/F-02-315three wayG1/2"2.5Kv
DF/F-02-220two wayG3/4"3.5Kv
DF/F-02-320three wayG3/4"3.5Kv
DF/F-02-225two wayG1"4.0Kv
DF/F-02-325three wayG1"4.0Kv
Prod Model: DF-F
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Eastern Asia,Western Europe
Quality: Good
Ningbo Sanheng Refrigeration Control Co., Ltd. is located at Xikou Industrial Zone, Ningbo City, Zhejiang Province. It is specializes in developing and manufacturing of refrigeration unit, refrigerated air dryer, Refrigeration Parts, Air Conditioner Parts and Auto A/C Parts, like refrigeration solenoid valves, thermal expansion valves, manifold gauge set, filter drier, ball valve, many kinds of expansion valve for Auto A/C and so on.

After decades of development, we have a profeeional refrigeration technology team with wealth of practical experience, self-developed special-purpose welding lines and unique testing equipment and advanced injection technologies. Meanwhile, we focus on improving the quality and stability of product, keep on investing in the introduction of various high-tech equipment, now we have a complete set of production equipment, such as high-precision CNC lathes, Automated assembly lines and so on. They help us to strictly control product quality and stability. Our company has passed ISO9001-2000 certificate and CE certificate.

Sanheng Company relies on the "Sanheng"spirit, i. e. "Quality Eternal, Service Eternal, and Prestige Eternal". We believe that we will make great contribution to refrigeration industry.
