Timer auto drain valve(ZCS-720) + strainer (AF-01)
Timer auto drain valve(ZCS-721) + strainer (AF-01)

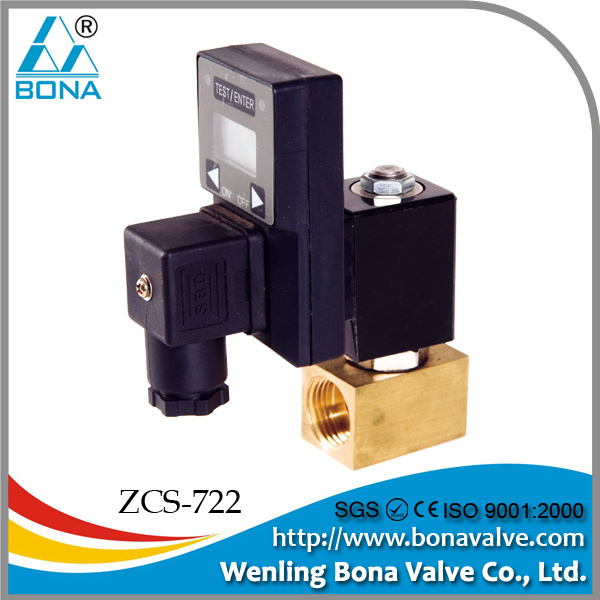

Timer auto drain valve(ZCS-722) + strainer (AF-01)
2/2 way, direct acting, normally closed
Interval: (OFF) 0.5~45minutes
Drain time: (ON) 0.5~10seconds
Three different type timers for your choice;
The strainer (ball valve) is optional;
The electronic drain valve is made up of electronic timer and solenoid valve, which can make the compressor condenstates water drain automatically;
It is widely used in air compressor, filer drier, oil/water segregator, refrigerant compressed, air drying machine, air compressor drip feet, and so on;
The timer of drain and interval can be adjustable according to different needs
| Port Size | female 1/4,3/8,1/2 |
| Body Material | brass |
| Sealing Material | NBR, etc |
| Max Working Pressure | 16Bar |
| Medium | Gas, Air, Water, Steam, etc. |
| Working Voltage | on request, such as AC 24V, DC 24V, AC 220V, AC 110V... |
| Temperature | 90/160deg C |
| Protection Class | IP65 with connector |
